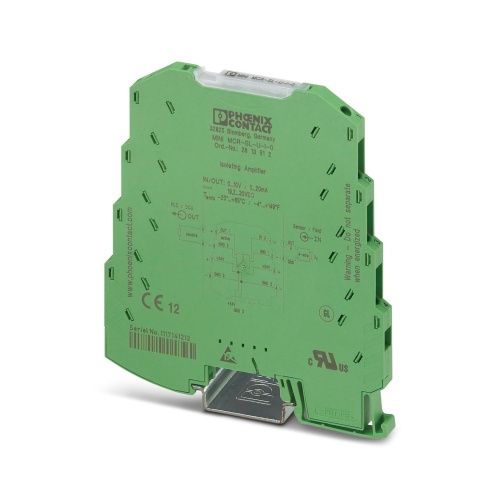

Phoenix Contact 2813512 Signal conditioner MINI MCR-SL-U-I-0
Normally In Stock
Code: 10457
MINI MCR-SL-U-I-0 MINI MCR-SL-U-I-0 Phoenix Contact 2813512 Signal Conditioner Isolating Amplifier
Condition: New
Usually ships Same Day or Next Day$327.46
Sale Price
$272.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2813512 The MCR 3-way isolating amplifier is designed to electrically isolate analog signals and features a screw connection type. It accepts input signals in the range of 0V to 10V and produces an output signal between 0mA and 20mA, providing effective electrical isolation for analog signal transmission.
Specifications
Conditioner Connection Type
Screw Connection
Conditioner Isolation
3 Way Isolation
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-20 Ma
Manufacturer
Phoenix Contact
Conditioner Number Output Signals
1 Output Signal
Conditioner Supply Voltage
24 VDC
Component
Signal Conditioner
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Number of Channels
1
Conditioner Input Signal Type
Voltage
Features
Power supply possible via the foot element (TBUS)
Low power consumption
Entry-level alternative to configurable signal conditioners
Highly-compact isolating amplifier for electrical isolation, conversion, amplification, and filtering of standard analog signals
3-way isolation
Fixed signal combinations
Downloads
Phoenix 2813512 CAD data International.dxfPhoenix 2813512 CAD data International.pdfPhoenix 2813512 CAD data International.stpPhoenix 2813512 CAD Drawing.zipPhoenix 2813512 Manual English.pdfPhoenix 2813512 Manufacturers declaration English.pdfPhoenix 2813512 Manufacturers declaration International-2.pdfPhoenix 2813512 Manufacturers declaration International-3.pdfPhoenix 2813512 Manufacturers declaration International.pdfPhoenix 2813512 Package Slip International.pdfPhoenix 2813512 Product Information English.pdfPhoenix 2813512 Spec Sheet.pdfPhoenix 2813512 Tender Text English.zipPhoenix 2813512 User Manual.pdf
