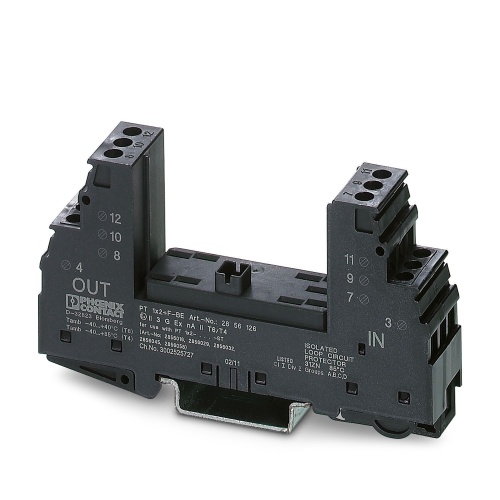

Phoenix Contact 2856126 Surge protection base-element PT 1X2+F-BE
Normally In Stock
Code: 10484

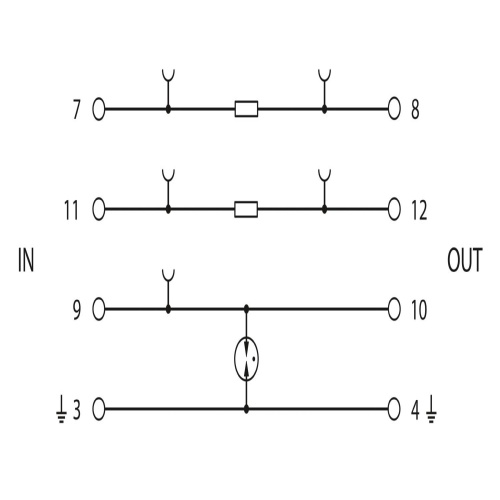

PT 1X2+F-BE Phoenix Contact Transient Surge Suppressor PT 1X2+F-BE Base element for protective plug PT with protective circuit for a 2-core floating signal circuit. Integrated gas arrester as coarse protection between GND and PE.
Condition: New
Usually ships Same Day or Next Day$93.18
Sale Price
$77.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

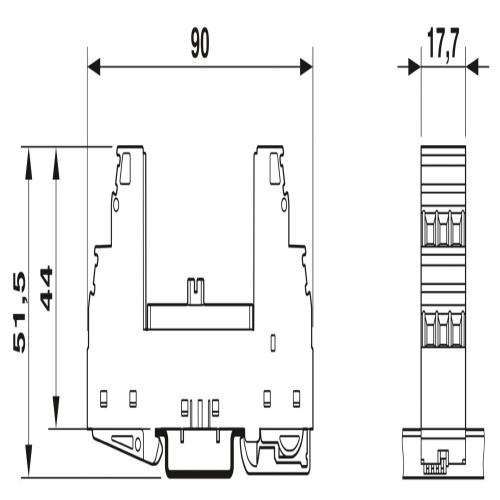

Phoenix Contact 2856126 A protective plug with protective circuit suitable for a 2-core floating signal circuit features an integrated gas arrester serving as coarse protection between the Ground (GND) and Earth (PE) connections, mounted on standard sizes including NS 35/7.5 und NS 35/15, with a housing width of 17.5 mm.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw connection
Surge Protector Line Voltage
48 Volt
Surge Protector Type
Surge arrester
Maximum Continous Voltage
264 Volt
Max Discharge Capacity
40 A
Nominal Discharge Current
20 kA
Sub Component
Base element
Features
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
