Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

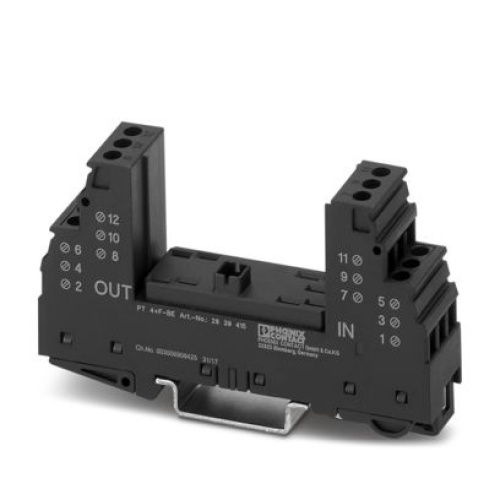

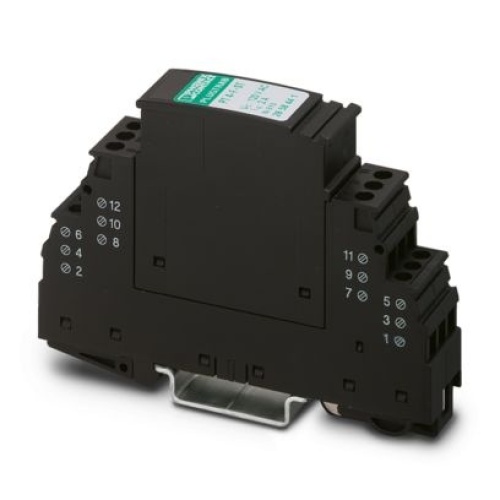

Phoenix Contact 2839415 Surge protection base-element PT 4+F-BE
Normally In Stock
Code: 10487

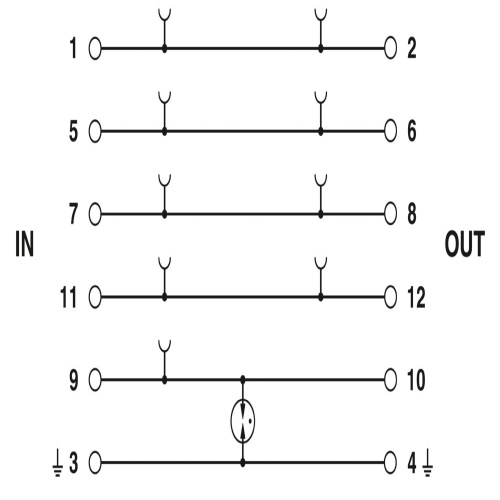

PT 4+F-BE Phoenix Contact Transient Surge Suppressor PT 4+F-BE Base element for protective plug PT with protective circuit for a 4-wire floating signal circuit, gas-filled surge arrester between the connections 3-4 (GND) and 9-10.
Condition: New
Usually ships within 7-14 days. Call for ship time.$169.73
Sale Price
$141.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

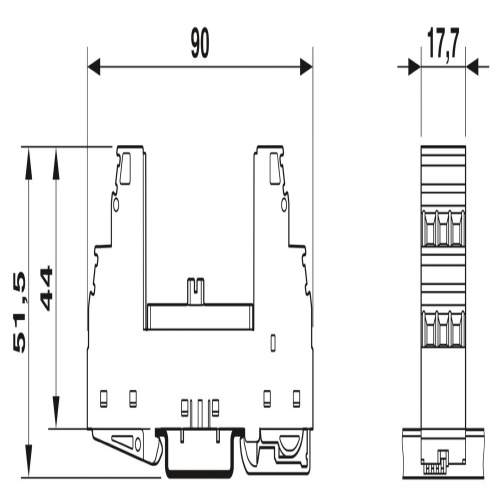

Phoenix Contact 2839415 The protective plug is a base element that features a protective circuit for a 4-wire floating signal circuit with a gas-filled surge arrester located between connections 3-4 (GND) and 9-10, designed to be mounted on NS 35/7.5 and NS35/15 enclosures, with a housing width of 17.5 mm.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
PV I - II
Arrester Class according to IEC
PV T1 - T2
Impulse Discharge Current
5 kA
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Replacement plug
Nominal Discharge Current
15 kA
Sub Component
Base element
Downloads
Phoenix 2839415 CAD data International.dxfPhoenix 2839415 CAD data International.pdfPhoenix 2839415 CAD data International.stpPhoenix 2839415 CAD Drawing.zipPhoenix 2839415 Flyer English.pdfPhoenix 2839415 Manufacturers declaration English.pdfPhoenix 2839415 Manufacturers declaration International.pdfPhoenix 2839415 Package Slip International.pdfPhoenix 2839415 Software International.zipPhoenix 2839415 Spec Sheet.pdfPhoenix 2839415 Surge Protection English.pdfPhoenix 2839415 Tender Text English.zipPhoenix 2839415 User Manual.pdf
Code: 10487
Phoenix Contact 2839415 Surge protection base-element PT 4+F-BE
$169.73
Sale Price
$141.44
