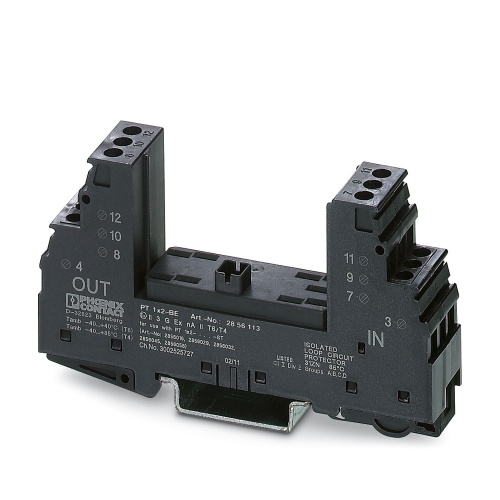

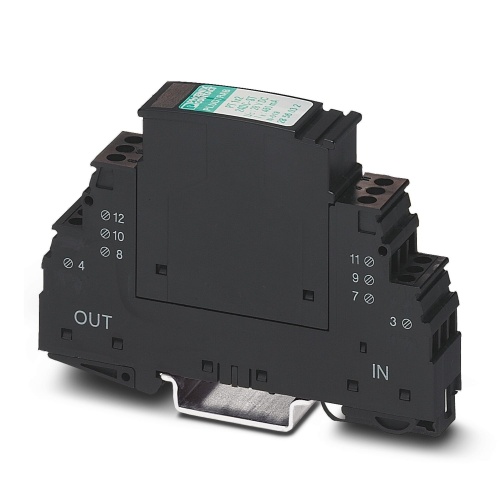

Phoenix Contact 2856113 Surge protection base-element PT 1X2-BE
Normally In Stock
Code: 10488
PT 1X2-BE Phoenix Contact Transient Surge Suppressor 2856113 Base element for protective plug PT with protective circuit for a 2-core floating signal circuit. Mounting on NS 35/7.5 und NS 35/15, housing width: 17.5 mm.
Condition: New
Usually ships Same Day or Next Day$84.86
Sale Price
$70.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

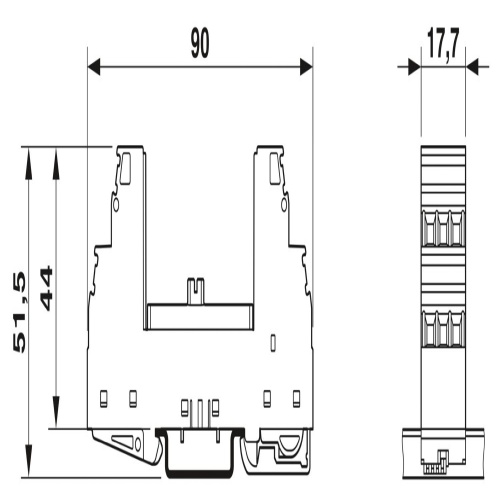

Phoenix Contact 2856113 The base element in question is designed as a protective plug with a built-in protective circuit specifically tailored for use with two-core floating signal circuits, and can be mounted onto standards NS 35/7.5 und NS 35/15, where the housing width measures 17.5 millimeters.
Specifications
Fault Warning
Optical
Fault Warning
remote indicator contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw connection
Surge Protector Line Voltage
48 Volt
Surge Protector Type
Surge arrester
Maximum Continous Voltage
150 Volt
Max Discharge Capacity
40 A
Nominal Discharge Current
20 kA
Sub Component
Base element
