Phoenix Contact 2839402 Surge protection base-element PT 4-BE
Normally In Stock
Code: 10491
PT 4-BE Phoenix Contact Transient Surge Suppressor PT 4-BE Base element for protective plug PT with protective circuit for a 4-wire floating signal circuit, bridge between the connections.
Condition: New
Usually ships Same Day or Next Day$153.50
Sale Price
$127.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

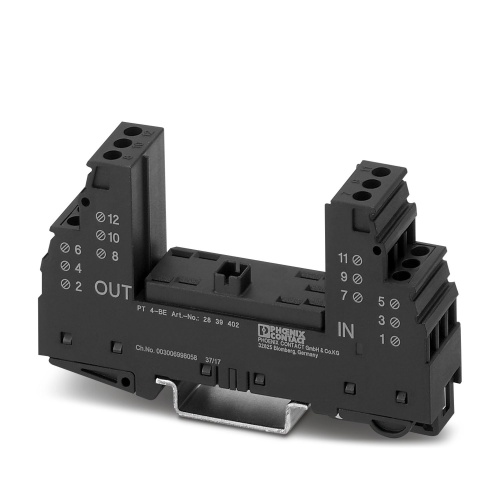

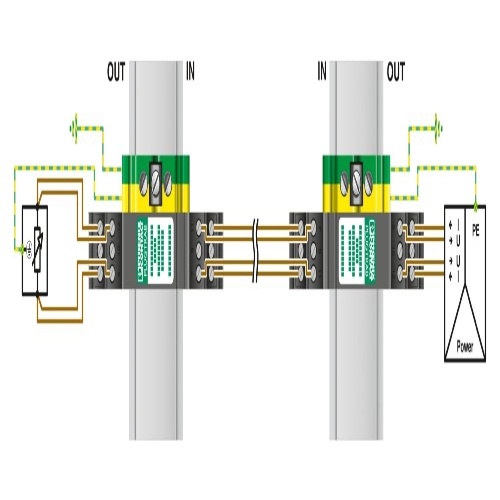

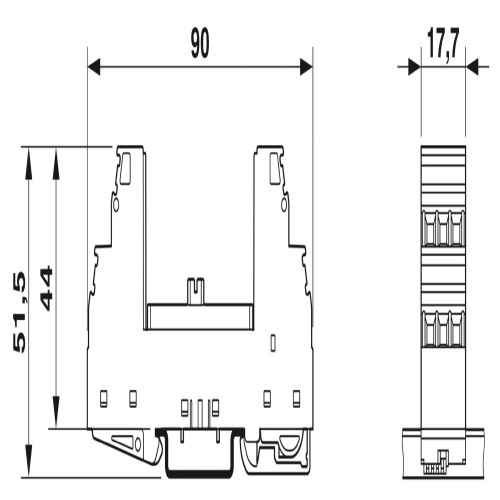

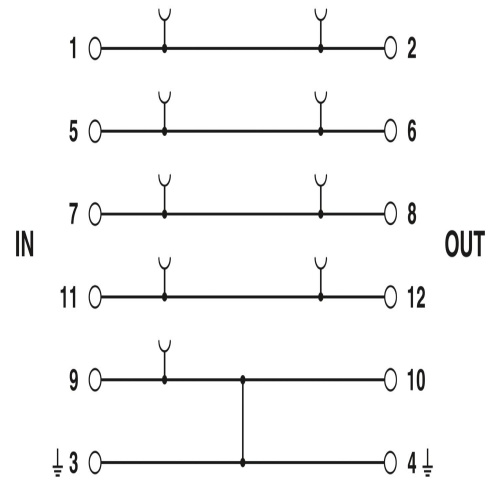

Phoenix Contact 2839402 The protective plug is designed as the base element for a protective circuit in a 4-wire floating signal circuit with a bridge connecting the GND connections at pins 3-4 and the power connections at pins 9-10. The plug is suitable for mounting on NS 35/7.5 and NS 35/15 enclosures, with a housing width of 17.5 mm.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
PV II
Arrester Class according to IEC
PV T2
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw connection
Surge Protector Type
Replacement plug
Nominal Discharge Current
15 kA
Surge Protector Line Voltage
110 Volt
Sub Component
Base element
Downloads
Phoenix 2839402 CAD data International.dxfPhoenix 2839402 CAD data International.pdfPhoenix 2839402 CAD data International.stpPhoenix 2839402 CAD Drawing.zipPhoenix 2839402 Certification English.pdfPhoenix 2839402 Flyer English.pdfPhoenix 2839402 Manufacturers declaration English.pdfPhoenix 2839402 Manufacturers declaration International.pdfPhoenix 2839402 Package Slip International.pdfPhoenix 2839402 Software International.zipPhoenix 2839402 Spec Sheet.pdfPhoenix 2839402 Surge Protection English.pdfPhoenix 2839402 Tender Text English.zipPhoenix 2839402 User Manual.pdf
