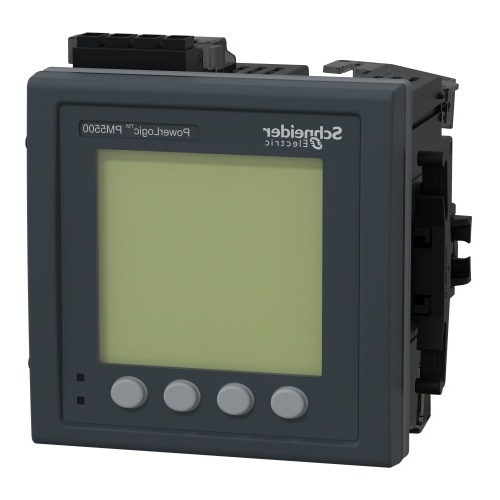

Schneider Electric METSEPM5560 PM5560 Meter, 2 ethernet, up to 63th H, 1,1M 4DI/2DO 52 alarms
Normally In Stock
Code: 114426
Schneider METSEPM5560 Power meter up to the 63rd harmonic Backlit LCD 128 samples/cycle Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUS, Modbus TCP/IP 10/100 Mbit/s 2500 V, Ethernet Modbus TCP/IP daisy chain, BACnet IP CE IEC 61010-1, CULus
Condition: New
Normally Stocked$4454.20
Sale Price
$3711.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
PM5560 Meter, 2 ethernet, up to 63th H, 1,1M 4DI/2DO 52 alarms
Specifications
Monitoring Approval
CE IEC 61010-1
Monitoring Approval
CULus UL 61010-1
Monitoring Approval
BTL
Monitoring Approval
EN 50470-3
Monitoring Approval
EN 50470-1
Monitoring Approval
IEC 62053-22
Monitoring Approval
IEC 60529
Monitoring Approval
UL 61010-1
Monitoring Approval
IEC 62053-24
Monitoring Approval
IEC 61557-12
Monitoring Approval
ANSI C12.20
Monitoring Interface
JBUS
Monitoring Interface
Ethernet Modbus TCP/IP daisy chain
Monitoring Interface
BACnet IP
Monitoring Interface
128 x 128 pixels
Monitoring Interface
Backlit LCD
Monitoring Primary Rated Current
1 Amp
Monitoring Primary Rated Current
5 Amp
Monitoring Accuracy Class
Class 0.2S
Monitoring Interface
Modbus RTU and ASCII
Monitoring Interface
Modbus TCP/IP
Manufacturer
Schneider Electric
Monitoring Input Current Range
5-10000 mAmp
Monitoring Measuring Range
128 samples/cycle
Monitoring Supply Voltage
125-250 VDC
Monitoring Supply Voltage
100-480 VAC
Component
Power Meter
Features
Feature-rich power and energy meters
Digital input and output for WAGES monitoring and control relays
Modbus RS-485, TCP/ IP, Ethernet IP, BACnet protocols for varied application
