Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

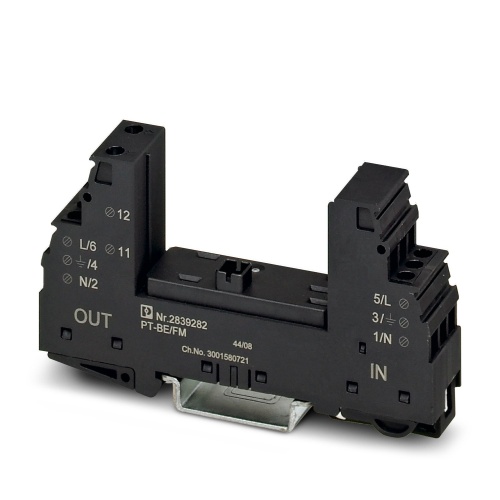

Phoenix Contact 2839282 Type 3 surge protection base element PT-BE/FM
Normally In Stock
Code: 1165
PT-BE/FM Phoenix Contact PT-BE/FM Base element for protective plug PT, for mounting on NS 35/7.5 and NS 35/15, housing width: 17.5 mm
Condition: New
Usually ships Same Day or Next Day$61.51
Sale Price
$51.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2839282 The standard base element for a protective plug is specifically designed for use with certain types of electrical connectors, including those designated as NS 35/7.5 and NS 35/15, and has a housing width of 17.5 millimeters to accommodate its intended application on these systems.
Specifications
Fault Warning
Optical
Fault Warning
remote indicator contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw connection
Surge Protector Line Voltage
230 Volt
Surge Protector Type
Surge arrester
Maximum Continous Voltage
358 Volt
Nominal Discharge Current
40 kA
Sub Component
Base element
Features
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Easy integration into the control room via floating remote indication contact
Downloads
Phoenix 2839282 CAD data International.dxfPhoenix 2839282 CAD data International.pdfPhoenix 2839282 CAD data International.stpPhoenix 2839282 CAD Drawing.zipPhoenix 2839282 Flyer English.pdfPhoenix 2839282 Manufacturers declaration English.pdfPhoenix 2839282 Manufacturers declaration International.pdfPhoenix 2839282 Package Slip International.pdfPhoenix 2839282 Software International.zipPhoenix 2839282 Spec Sheet.pdfPhoenix 2839282 Surge Protection English.pdfPhoenix 2839282 Tender Text English.zipPhoenix 2839282 User Manual.pdf
