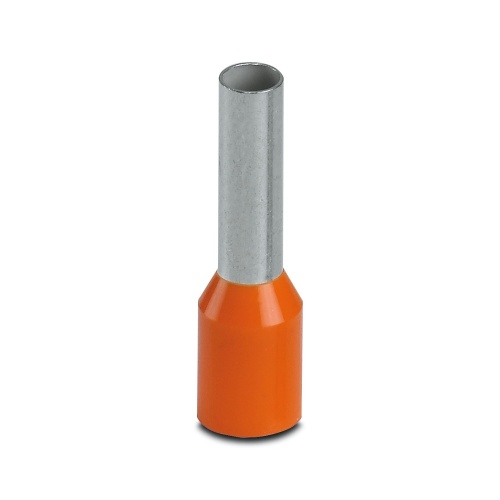

Phoenix Contact 3200085 Ferrule AI 4 -10 OG
Normally In Stock
Code: 12005
Phoenix Contact AI 4 -10 OG, Orange Ferrule 12 guage AWG. 10mm pin length and 17mm overall length. (Sold in packs of 100)
Condition: New
Usually ships Same Day or Next Day$0.31
Sale Price
$0.26
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3200085 Ferrule, Length contact range: 10 mm, sleeve length: 17 mm, color: orange
Specifications
Ferrule Type
Single Conductor Standard
Ferrule Color
Orange
Ferrule Pin Length
10 mm
Ferrule for Wire Gauge
12 Gauge
Ferrule Overall Length
17 mm
Manufacturer
Phoenix Contact
Component
Ferrule
Features
In terms of dimensions, these ferrules conform to DIN 46228-4: 1990-09
The color code of the plastic insulating collar is based on the French standard NF C 63-023: 1994-02
The metal sleeves are made from soft tin-plated electrolytic copper
Downloads
Code: 12005
Phoenix Contact 3200085 Ferrule AI 4 -10 OG
$0.31
Sale Price
$0.26
