Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 2800836 Thermal-magnetic device circuit breaker CB TM1 1A SFB P
Normally In Stock
Code: 12129
Phoenix 2800836 Thermomagnetic device circuit breakers 1 Amp on base element Protective Devices
Condition: New
Usually ships Same Day or Next Day$64.80
Sale Price
$54.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2800836 A thermal-magnetic device circuit breaker is a type of breaker that features one position and a tripping characteristic based on Superficial Breakage (SFB) monitoring. It includes one changeover contact and is paired with a plug that connects to the base element, allowing for seamless switching between two states.
Specifications
Breaker Amperage Rating
1 Amp
Breaker Number of Poles
Single Pole
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Increased safety with electrical isolation in the event of errors

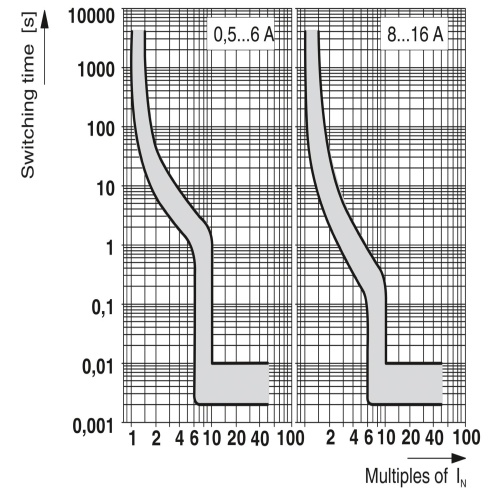

Fuse protection for above-average conductor lengths with the aid of the SFB characteristic curve
Protective plug with fixed nominal current value as protection against unintentional changes
Individually adjustable with protective plugs
Downloads
Phoenix 2800836 CAD data International.dxfPhoenix 2800836 CAD data International.stpPhoenix 2800836 CAD Drawing.zipPhoenix 2800836 Flyer English.pdfPhoenix 2800836 Installation Guide.pdfPhoenix 2800836 Manufacturers declaration English.pdfPhoenix 2800836 Manufacturers declaration International.pdfPhoenix 2800836 Package Slip International.pdfPhoenix 2800836 Package Slip.pdfPhoenix 2800836 Spec Sheet.pdfPhoenix 2800836 Tender Text English.zipPhoenix 2800836 Various English.pdfPhoenix 2800836 Various English-2.pdf
