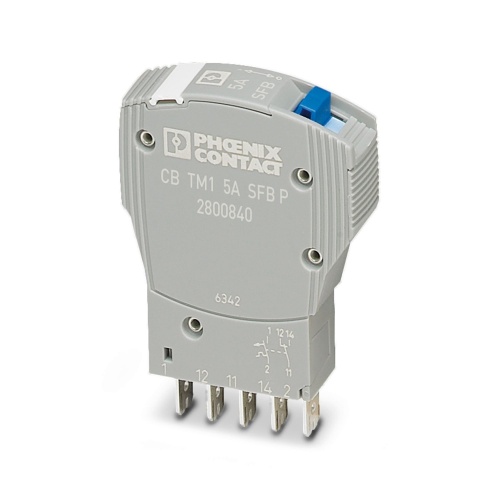

Phoenix Contact 2800840 Thermal-magnetic device circuit breaker CB TM1 5A SFB P
Normally In Stock
Code: 12133
Phoenix Contact 2800840 Pluggable Breaker CB TM1 1 Pole 5A
Condition: New
Usually ships Same Day or Next Day$57.80
Sale Price
$48.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800840 A thermal-magnetic circuit breaker features a single position and a tripping characteristic known as Single Break Failure (SFB), which allows for one changeover contact and is designed to accommodate a plug that connects the base element.
Specifications
Breaker Type
Supplementary Breaker
Breaker Switching Type
Miniature Thermal
Breaker Auxilary Contacts
Double Throw NO or NC
Breaker Mechanism Type
Toggle
Breaker UL Rating
UL 1077 Recognized
Breaker Amperage Rating
5 Amp
Breaker Number of Poles
Single Pole
Breaker Trip Speed
Normal Trip
Breaker Protection For
All Application Types
Breaker Overcurrent Protection Rating

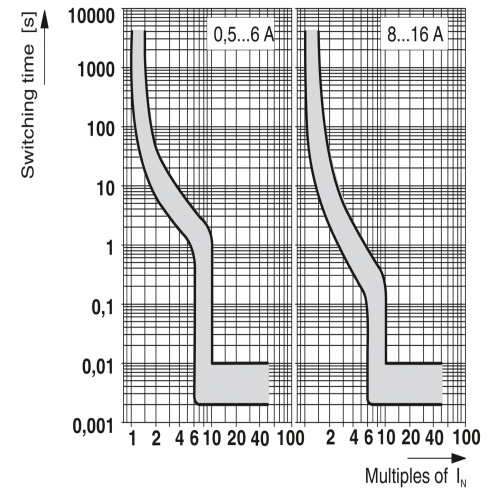

C Curve 7-10 x Amp Rating
Breaker Unit
Plug In Unit
Breaker Mount Type
Plug-in
Manufacturer
Phoenix Contact
Component
Pluggable Breaker
Features
Individually adjustable with protective plugs
Fuse protection for above-average conductor lengths with the aid of the SFB characteristic curve
Protective plug with fixed nominal current value as protection against unintentional changes
Increased safety with electrical isolation in the event of errors
Downloads
Phoenix 2800840 CAD data International.dxfPhoenix 2800840 CAD data International.stpPhoenix 2800840 CAD Drawing.zipPhoenix 2800840 Flyer English.pdfPhoenix 2800840 Installation Guide.pdfPhoenix 2800840 Manufacturers declaration English.pdfPhoenix 2800840 Manufacturers declaration International.pdfPhoenix 2800840 Package Slip International.pdfPhoenix 2800840 Package Slip.pdfPhoenix 2800840 Spec Sheet.pdfPhoenix 2800840 Tender Text English.zipPhoenix 2800840 Various English-2.pdfPhoenix 2800840 Various English.pdf
