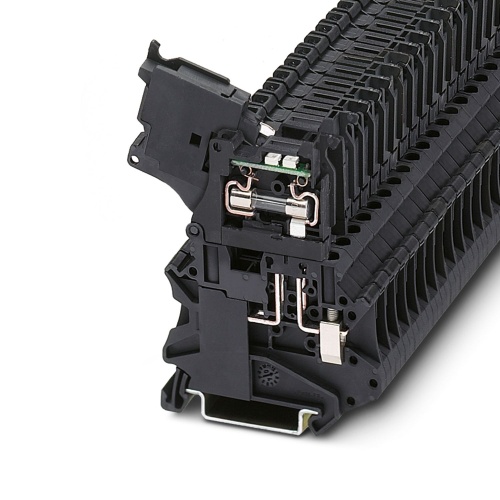

Phoenix Contact 3046090 Auto Electrical Fuse Terminal Block
Normally In Stock
Code: 1214
This 24V, 6.3A Type G fuse features screw connections and varies rated areas, suitable for NS plate mounting in industrial applications
Condition: New
Usually Ships Same day or Next Day$11.74
Sale Price
$9.78
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The Phoenix Contact 3046090 fuse terminal block features a glass/ceramic fuse suitable for 24V nominal voltage up to 6.3A current, utilizing screw connections for mounting on NS 35/7.5 or NS 35/15 plates with a rated cross-sectional area of 4mm²
Specifications
Terminal Block Indication
12V LED Indicator
Terminal Block Indication
24V LED Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 x 20
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse terminal block
Sub Component
Fuse Modular Terminal Block
Features
Test pick-off on both sides in the fuse lever
Tested for railway applications
An extremely compact design
Downloads
Phoenix 3046090 CAD data International.dxfPhoenix 3046090 CAD data International.pdfPhoenix 3046090 CAD data International.stpPhoenix 3046090 CAD Drawing.zipPhoenix 3046090 Manufacturers declaration English.pdfPhoenix 3046090 Product Information English.pdfPhoenix 3046090 Safety note English.pdfPhoenix 3046090 Spec Sheet.pdfPhoenix 3046090 Tender Text English.zip
