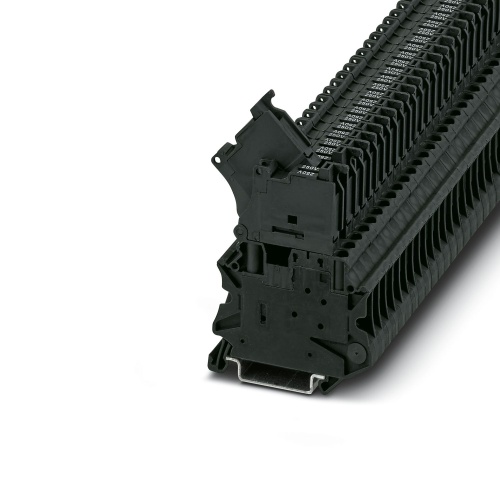

Phoenix Contact 3046100 Fuse modular terminal block UT 4-HESILA 250 (5X20)
Normally In Stock
Code: 1216
UT 4-HESILA 250 (5X20) Phoenix Contact 3046100 Fuse Block UT 4-HESILA 250 (5X20)
Condition: New
Usually ships within 7-14 days. Call for ship time.$10.87
Sale Price
$9.06
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046100 A fuse with a modular terminal block is available in glass or ceramic construction and is rated for 250V nominal voltage and 6.3A nominal current. It features a screw connection and has a cross-sectional area of 0.14-6mm2. The fuse is mounted using the NS35/7,5 and NS35/15 types and has a black color.
Specifications
Terminal Block Indication
120V LED Indicator
Terminal Block Indication
230V LED Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
250 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 x 20
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse terminal block
Sub Component
Fuse Modular Terminal Block
Features
Test pick-off on both sides in the fuse lever
Tested for railway applications
An extremely compact design
Downloads
Phoenix 3046100 CAD data International.dxfPhoenix 3046100 CAD data International.pdfPhoenix 3046100 CAD data International.stpPhoenix 3046100 CAD Drawing.zipPhoenix 3046100 Manufacturers declaration English.pdfPhoenix 3046100 Manufacturers declaration International.pdfPhoenix 3046100 Safety note English.pdfPhoenix 3046100 Spec Sheet.pdfPhoenix 3046100 Tender Text English.zip
