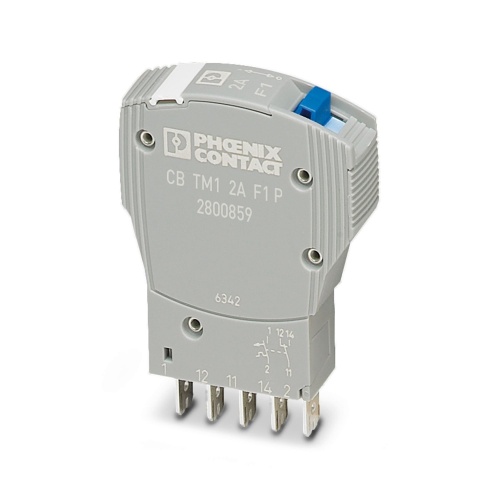

Phoenix Contact 2800859 Thermal-magnetic device circuit breaker CB TM1 2A F1 P
Normally In Stock
Code: 12174
Phoenix Contact 2800859 Pluggable Breaker CB TM1 1 Pole 2A
Condition: New
Usually ships Same Day or Next Day$56.70
Sale Price
$47.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800859 The device is a thermal-magnetic circuit breaker designed for single-phase applications, featuring a fast-tripping characteristic known as F1, which indicates it can interrupt current rapidly when the threshold temperature of its base element is reached, accompanied by a mechanism to switch between two contacts and a plug that connects to the base element.
Specifications
Breaker Type
Supplementary Breaker
Breaker Switching Type
Miniature Thermal
Breaker Auxilary Contacts
Double Throw NO Or NC
Breaker Mechanism Type
Toggle
Breaker UL Rating
UL 1077 Recognized
Breaker Amperage Rating
2 Amp
Breaker Number of Poles
Single Pole
Breaker Trip Speed
Fast Trip
Breaker Protection For
Sensitive Equipment
Breaker Overcurrent Protection Rating

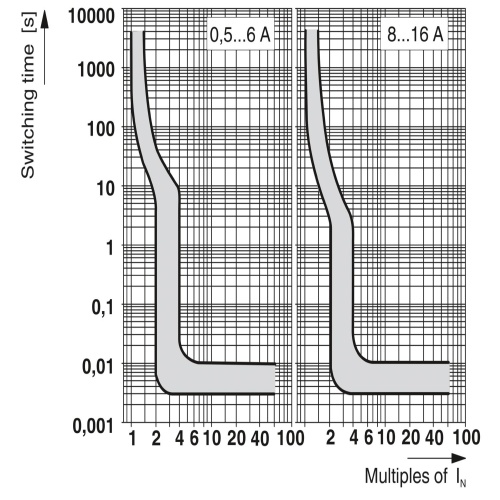

B Curve 3.2-4.8 X Amp Rating
Breaker Unit
Plug In Unit
Breaker Mount Type
Plug-In
Manufacturer
Phoenix Contact
Component
Pluggable Breaker
Features
Individually adjustable with protective plugs
Fast tripping in the event of an error with the aid of the F1 characteristic curve
Protective plug with fixed nominal current value as protection against unintentional changes
Increased safety with electrical isolation in the event of errors
Downloads
Phoenix 2800859 CAD data International.dxfPhoenix 2800859 CAD data International.stpPhoenix 2800859 CAD Drawing.zipPhoenix 2800859 Flyer English.pdfPhoenix 2800859 Installation Guide.pdfPhoenix 2800859 Manufacturers declaration English.pdfPhoenix 2800859 Manufacturers declaration International.pdfPhoenix 2800859 Package Slip International.pdfPhoenix 2800859 Spec Sheet.pdfPhoenix 2800859 Tender Text English.zipPhoenix 2800859 Various English-2.pdfPhoenix 2800859 Various English.pdf
