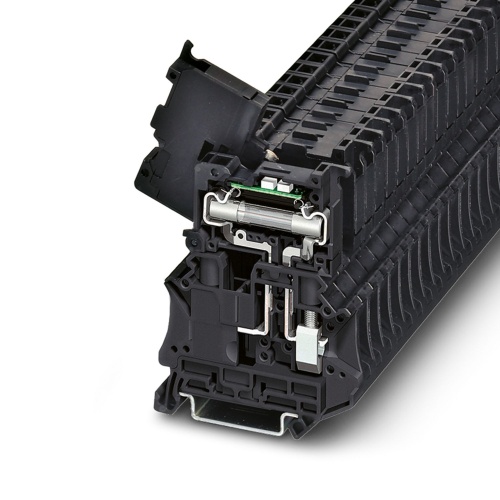

Phoenix Contact 3046430 Fuse modular terminal block UT 6-HESILA 250 (6,3X32)
Normally In Stock
Code: 1228
UT 6-HESILA 250 (6,3X32) Phoenix Contact 3046430 Phoenix Contact UT 6-HESILA 250 (6.3X32). Fuse Block 8.2mm Black with screw connection for 1/4" x 1-1/4" glass fuse insert with 110-250 V AC/DC light indicator, 250V, 10A, screw connection, 8-24 AWG.
Condition: New
Usually Ships Same day or Next Day$15.65
Sale Price
$13.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046430 A fuse with a modular terminal block is designed for 250V and 10A applications, featuring screw connections and various cross-sectional ratings from 0.2 to 10mm2, while its mounting type includes NS 35/7.5 and NS 35/15 configurations, all in black color.
Specifications
Terminal Block Indication
120V LED Indicator
Terminal Block Indication
230V LED Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
250 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Max Wire Size
8
Terminal Block Component Color
Black
Terminal Block Fuse Type
3 x 32
Terminal Block Amperage
10 Amp
Terminal Block Fuse Type
G - 6
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Fuse terminal block
Sub Component
Fuse Modular Terminal Block
Features
Test pick-off on both sides in the fuse lever
Tested for railway applications
An extremely compact design
Downloads
Phoenix 3046430 CAD data International.dxfPhoenix 3046430 CAD data International.pdfPhoenix 3046430 CAD data International.stpPhoenix 3046430 CAD Drawing.zipPhoenix 3046430 Manufacturers declaration English.pdfPhoenix 3046430 Manufacturers declaration International.pdfPhoenix 3046430 Safety note English.pdfPhoenix 3046430 Spec Sheet.pdfPhoenix 3046430 Tender Text English.zip
