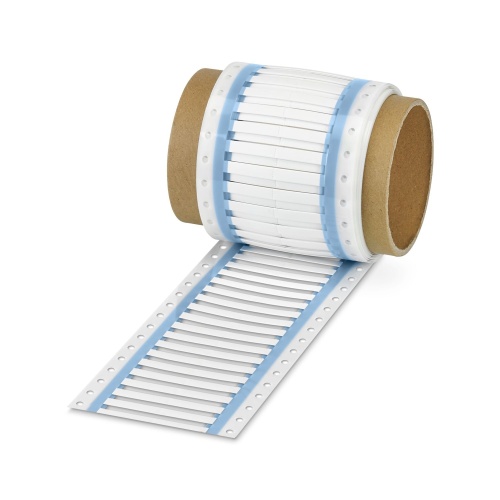

Phoenix Contact 0800374 Shrink sleeve WMS 3,2 (30X5)R
Normally In Stock
Code: 1329
Phoenix Contact WMS 3, 2 (30X5)R White Marker for THERMOARK Roll Printer, 1 perforation/2 labels per sleeve, 500 labels on 250 sleeves, white, labeling field: 30 x 5 mm, accepts up to 3.2 mm diameter conductor. 14-16 gauge MTW(12-14 THHN)
Condition: New
Usually ships Same Day or Next Day$203.36
Sale Price
$169.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800374 A shrink sleeve with a roll of white labeling options includes THERMOMARK products such as E.300 and ROLLMASTER lines, available in various formats like ROLL X1 and W, all with a cable diameter range of 1 to 3.2mm and featuring perforated designs that can be easily mounted using the slide-on method; each label has a text field height of 5mm and width of 30mm, capable of holding up to 500 individual labels.
Specifications
Label Color
White
Label Preforations
1 Preforation
Marking Color
White
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Width
5 mm
Component
Wire Heat Shrink Label
Manufacturer
Phoenix Contact
MTW Wire Gauge
14-16 Gauge MTW Wire
THHN Wire Gauge
12-14 Gauge THHN Wire
Marking Lettering Field Size
30 mm X 5 mm
Features
Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
