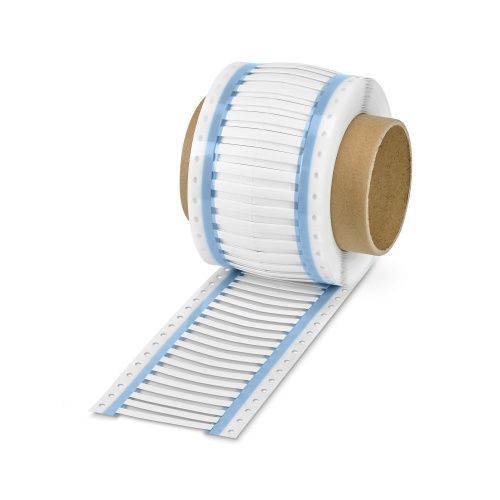

Phoenix Contact 0800387 Shrink sleeve WMS 3,2 (30X5)RL
Normally In Stock
Code: 1331
Phoenix Contact WMS 3, 2 (30X5)RL White Marker for THERMOARK Roll Printer, 1 perforation/2 labels per sleeve, 2000 labels on 1000 sleeves, white, labeling field: 30 x 5 mm, accepts up to 3.2 mm diameter conductor. 14-16 gauge MTW(12-14 THHN)
Condition: New
Usually ships Same Day or Next Day$652.72
Sale Price
$543.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800387 A shrink sleeve with a roll that is typically white and unlabeled can be customized to display one of several Thermomark branding options including the THERMOMARK E.300 (D)/600 (D) or ROLLMASTER designs, along with other options like ROLL X1, W, or X1.2 models. The sleeve has a cable diameter range between 1-3.2 mm and features perforations for easy use. It can be mounted using the slide-on method and comes pre-printed with individual labels in quantities of 2000, allowing for clear text fields measuring 5mm high by 30mm wide.
Specifications
Label Color
White
Label Preforations
1 Preforation
Marking Color
white
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
slide-on
Marking Width
5 mm
Component
Wire Heat Shrink Label
Manufacturer
Phoenix Contact
MTW Wire Gauge
14-16 gauge MTW Wire
THHN Wire Gauge
12-14 gauge THHN Wire
Marking Lettering Field Size
30 mm x 5 mm
Features
Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
