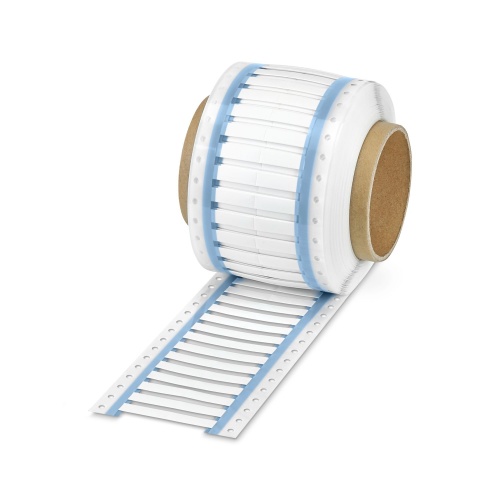

Phoenix Contact 0800388 Shrink sleeve WMS 4,8 (30X9)RL
Normally In Stock
Code: 1341
Phoenix Contact WMS 4, 8 (30X9)RL White Marker for THERMOARK Roll Printer, 1 perforation/2 labels per sleeve, 2000 labels on 1000 sleeves, white, labeling field: 30 x 9 mm, accepts up to 4.8 mm diameter conductor.
Condition: New
Usually ships Same Day or Next Day$560.29
Sale Price
$466.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800388 The shrink sleeve is a white, unlabeled roll with multiple label options including THERMOMARK's E.300/D and ROLLMASTER lines, as well as their ROLL X1 and W models. The cable diameter range varies between 1.6 to 4.8 mm and features perforations for easy use. This shrink sleeve has a slide-on mounting type and can be labeled with up to 2000 individual text labels, which have a height of 9mm and width of 30mm.
Specifications
Label Color
White
Label Preforations
1 Preforation
Marking Color
white
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
slide-on
Marking Width
9 mm
Component
Wire Heat Shrink Label
Manufacturer
Phoenix Contact
MTW Wire Gauge
10-12 gauge MTW Wire
THHN Wire Gauge
10 gauge THHN Wire
Marking Lettering Field Size
30 mm x 9 mm
Features
Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
