Phoenix Contact 0800382 Shrink sleeve WMS 4,8 (15X9)R
Normally In Stock
Code: 1343

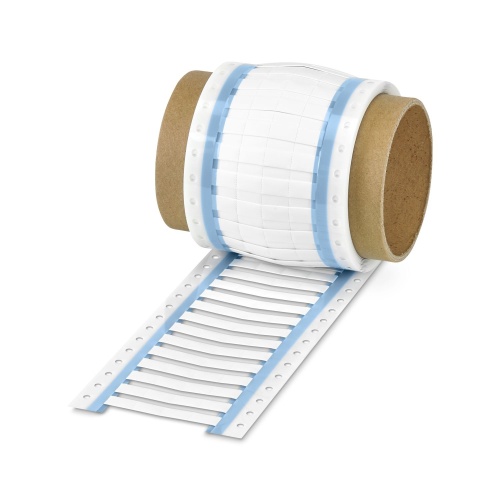

Phoenix Contact WMS 4, 8 (15X9)R R White Marker for THERMOARK Roll Printer, 3 perforation/4 labels per sleeve, 1000 labels on 250 sleeves, white, labeling field: 15 x 9 mm, accepts up to 4.8 mm diameter conductor.
Condition: New
Usually ships Same Day or Next Day$205.86
Sale Price
$171.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800382 A shrink sleeve label can be labeled with various THERMOMARK products including the E.300 (D)/600 (D) series, ROLLMASTER 300/600, ROLL X1, and W labels, among others. These labels come in a range of cable diameters from 1.6 to 4.8 mm and are perforated for easy application. The mounting type is slide-on, allowing for quick and secure installation on tubes or hoses. Each label can accommodate up to 1000 individual text fields, with a maximum height of 9mm and width of 15mm, making it suitable for various labeling needs.
Specifications
Label Color
White
Label Preforations
3 Preforations
Marking Color
white
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
slide-on
Marking Width
9 mm
Component
Wire Heat Shrink Label
Manufacturer
Phoenix Contact
MTW Wire Gauge
10-12 gauge MTW Wire
THHN Wire Gauge
10 gauge THHN Wire
Marking Lettering Field Size
15 mm x 9 mm
Features
Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
