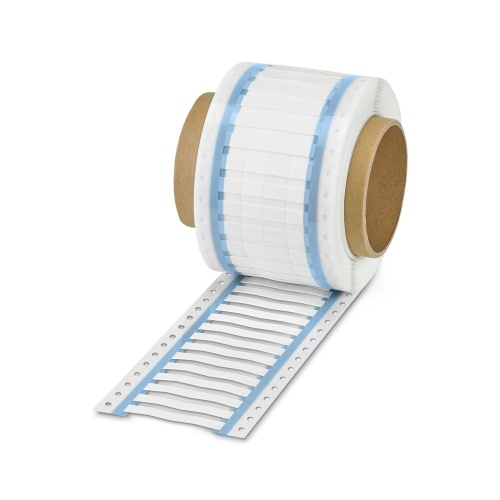

Phoenix Contact 0800391 Shrink sleeve WMS 4,8 (15X9)RL
Normally In Stock
Code: 1345
Phoenix Contact WMS 4, 8 (15X9)RL White Marker for THERMOARK Roll Printer, 3 perforation/4 labels per sleeve, 4000 labels on 1000 sleeves, , white, labeling field: 15 x 9 mm, accepts up to 4.8 mm diameter conductor.
Condition: New
Usually ships Same Day or Next Day$562.15
Sale Price
$468.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800391 A shrink sleeve can be labeled with various Thermomark products, including the THERMOMARK E.300 (D)/600 (D), ROLLMASTER 300/600, ROLL X1, and other models like W and X1.2. The sleeve is made of white material, is rollable, and features a perforated design for easy mounting via slide-on installation. It has 4000 individual labels, with text fields measuring 9mm in height and 15mm in width, accommodating cable diameters ranging from 1.6 to 4.8mm.
Specifications
Label Color
White
Label Preforations
3 Preforations
Marking Color
white
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
slide-on
Marking Width
9 mm
Component
Wire Heat Shrink Label
Manufacturer
Phoenix Contact
MTW Wire Gauge
10-12 gauge MTW Wire
THHN Wire Gauge
10 gauge THHN Wire
Marking Lettering Field Size
15 mm x 9 mm
Features
Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
