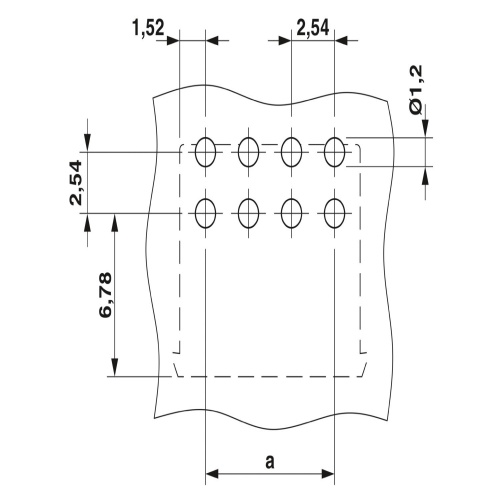

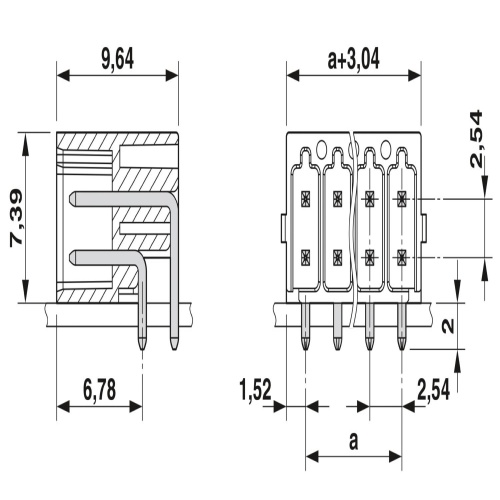

Phoenix Contact 1844772 The PCB header features a nominal cross-sectional area of 0.5mm² with a black color and is rated for a maximum current of 6A at a voltage of 160V. The contact surface is made of gold (Au), and it utilizes a pin connection type with 14 potentials arranged in two rows, each with seven positions and fourteen connections. These headers are designed to accommodate the DMC 0.5/..-G1-THR product range and have a pitch of 2.54mm, allowing for easy soldering or wave soldering mounting. The pin layout follows a linear configuration with solder pins spaced at 2mm intervals, each connected to one potential, while the plug-in system is based on the COMBICON DFMC 0.5 pin connector pattern.
