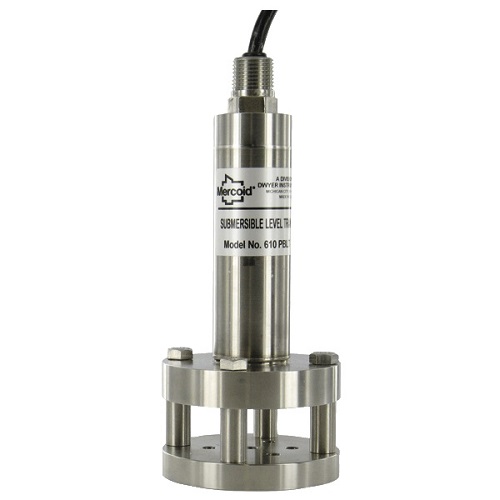

Dwyer Mercoid PBLTX-10-40 Submersible Level Transmitter
Normally In Stock
Code: 14260
Dwyer Mercoid PBLTX-10-40 Submersible Level Transmitter Class 1 Div 1. Perfect for Wastewater Slurries and Sludge. 40' ETFE cable with range of 0-10 PSI or 23 ft. water column and an accuracy of ≤ 0.25%. Output of 4-20 mA 2-wire (Loop Powered) with supply voltage of 10-33 VDC and 40' pigtail electrical connection. 316 stainless steel large diaphram and steel cage not removable. No conduit connection threads. Class 1 Div 1 intrinsically safe for use in hazardous locations with 316 Stainless Case. Temperature range of 0F-176 F. Diameter is 3-7/16".
Condition: New
Usually ships Same Day or Next Day$1567.97
Sale Price
$1306.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer Mercoid PBLTX-10-40 Submersible Level Transmitter Series SBLTX Dirty Liquid Submersible Level Transmitter. Class 1 Div 1 intrinsically safe. Perfect for Sludge and Slurries. Dirty Application Submersible Level Transmitter for dirty applications like wastewater and slurry applications. Recommended Accessories: A-625 Cable Hanger, A-297 Dessicant Filter.
Specifications
Component
Submersible Level Transmitter
Manufacturer
Dwyer
(Instrument-Sensor) Size
3.4375"
(Instrument-Sensor) Type
Protective Cage
(Instrument-Sensor) Span
23'
(Instrument-Sensor) Output Signal Type
4-20 mA 2 Wire (Loop Powered)
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Application
Dirty Liquids
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) Temperature Range
0 F - 176 F
(Instrument-Sensor) Hazardous Location Class
Class 1 Div 1 Intrinsically Safe
Features
Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
Minimal downtime with standard 72 hour lead time
