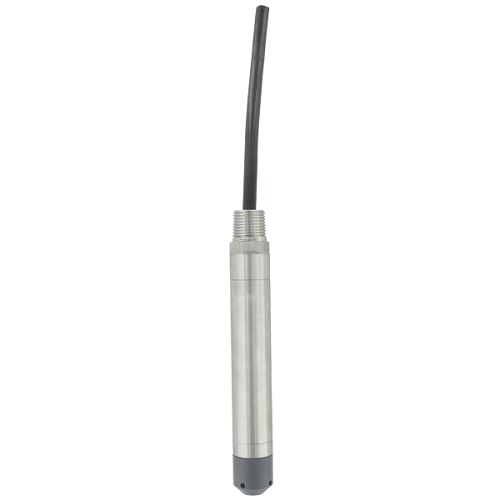

Dwyer Mercoid SBLT2-15-60 Submersible Level Transmitter
Normally In Stock
Code: 14271
Dwyer Mercoid SBLT2-15-60 Submersible Level Transmitter with built in lightning protection. Perfect for Wells and Ground Water. 60' Polyurethane cable with range of 0-15 PSI or 34 ft. water column and an accuracy of ≤ 0.25%. Output of 4-20 mA 2-wire (Loop Powered) with supply voltage of 10-33 VDC and 60' pigtail electrical connection. Bullet style nose made of PVC not removable. No conduit connection threads. Class CE general purpose with 316 Stainless Case. Temperature range of -0F-150 F. Diameter is 1".
Condition: New
Usually ships Same Day or Next Day$772.64
Sale Price
$643.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer Mercoid SBLT2-15-60 Submersible Level Transmitter Series SBLT2 Clean Liquid Submersible Level Transmitter with built in lightning protection. Perfect for Ground Water and Wells, Lightning Protected. Clean Application Submersible Level Transmitter for clean, low-soids applications Recommended Accessories: A-625 Cable Hanger, A-297 Dessicant Filter.
Specifications
Component
Submersible Level Transmitter
Manufacturer
Dwyer
(Instrument-Sensor) Output Signal Type
4-20 mA 2 Wire (Loop Powered)
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) Span
34'
(Instrument-Sensor) Size
1"
(Instrument-Sensor) Type
Bullet Nose
(Instrument-Sensor) Type
Slim Bore
(Instrument-Sensor) Application
Clean Liquids
(Instrument-Sensor) Temperature Range
0 F - 150 F
Features
Slim design for tight applications with bullet nose, which protects the diaphragm from damage
Incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on SBLT2 models
Maintenance free filter eliminates particulate or water droplets from entering and damaging the transducer
UL approved intrinsically safe on SBLTX models for use in hazardous locations when used with proper barrier
Excellent chemical compatibility for wide application use
NPT connection allows the unit to be rigidly installed in a pipe/conduit, or the addition of a A-625 hanging loop for attaching a chain for pulling out of the installation
Standard 72 hour lead time ensures minimal downtime
