Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

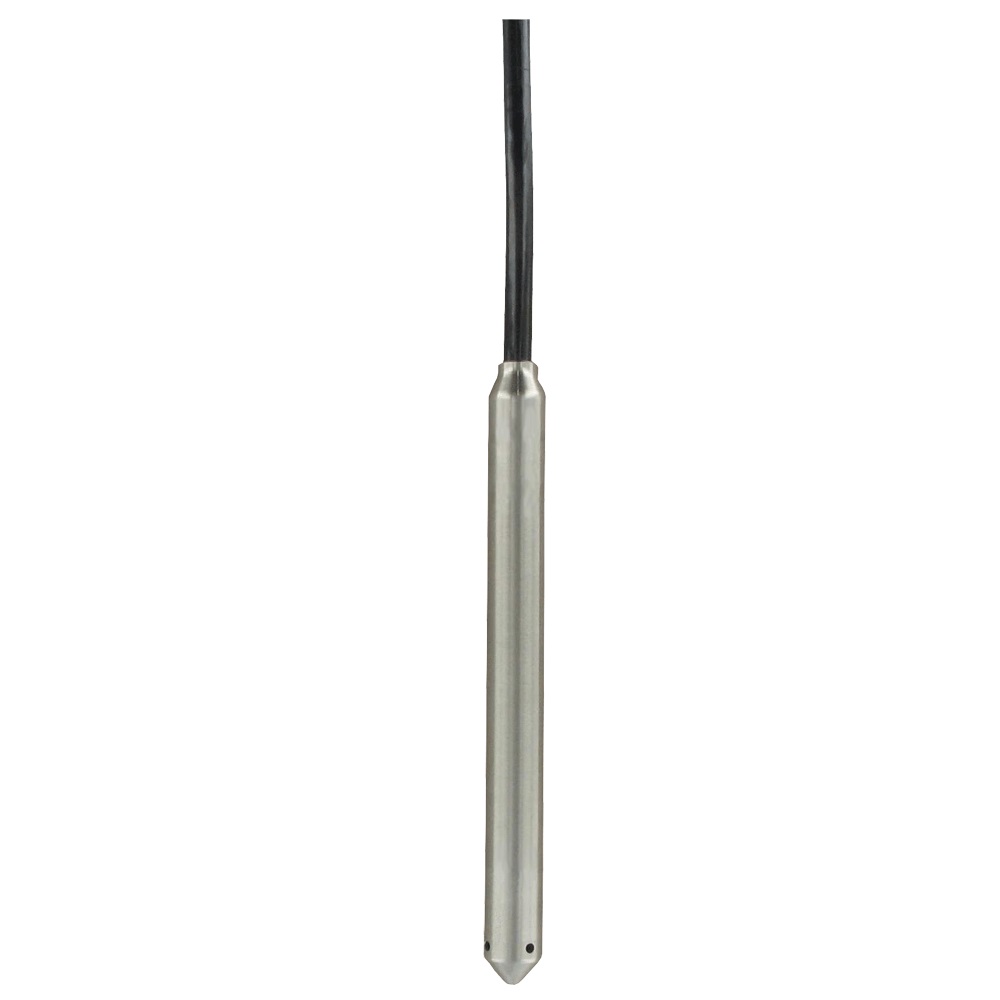

Dwyer Mercoid MBLT-2SC-IVPM-5-12.2 Submersible Level Transmitter
Normally In Stock
Code: 14281
Dwyer Mercoid MBLT-2SC-IVPM-5-12.2 Mini Submersible Level Transmitter with built in lightning protection. Perfect for Wells and Boreholes. 40' Polyurethane cable with range of 0-7 PSI or 16 ft. water column and an accuracy of ≤ 0.25%. Output of 4-20 mA 2-wire (Loop Powered) with supply voltage of 10-33 VDC and 40' pigtail electrical connection. Bullet style nose made of 316 stainless steel not removable. No conduit connection threads. Class CE general purpose with 316 Stainless Case. Temperature range of -4F-176 F. Diameter is 5/8".
Condition: New
Usually ships Same Day or Next Day$965.76
Sale Price
$804.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer Mercoid MBLT-2SC-IVPM-5-12.2 Submersible Level Transmitter Series MBLT Miniature Submersible Level Transmitter. Slim Bore only 0.63" in Diameter. Slim design great for tight boreholes and well applications. Submersible Level Transmitter for Clean Applications. Vent has maintenance free filter to prevent particalate or water drops from entering transmitter. Recommended Accessories: A-297 Dessicant Filter.
Specifications
Component
Submersible Level Transmitter
Manufacturer
Dwyer
(Instrument-Sensor) Output Signal Type
4-20 mA 2 Wire (Loop Powered)
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) Type
Bullet Nose
(Instrument-Sensor) Type
Slim Bore
(Instrument-Sensor) Application
Clean Liquids
(Instrument-Sensor) Measurement Accuracy
0.1%
(Instrument-Sensor) Temperature Range
-4 F - 176 F
(Instrument-Sensor) Span
16'
(Instrument-Sensor) Size
0.63"
Features
Slender 0.63˝ (16 mm) diameter design fits in narrow openings
Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
Body top is 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation
Low power voltage output models are ideal for remote level monitoring with rechargeable battery and solar panel
Maintenance free filter on vent tube eliminates particulate water droplets from entering the transducer
Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients
