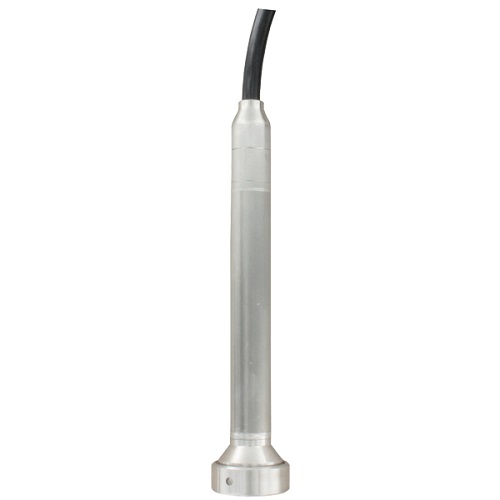

Dwyer Mercoid FBLT-2SC-IVEP-10-40 Submersible Level Transmitter
Normally In Stock
Code: 14310
Dwyer Mercoid FBLT-2SC-IVEP-10-40 Submersible Level Transmitter with Flush Tip and built in lightning protection. Perfect for Sludge and Slurries. 40' ETFE cable with range of 4.5-10 PSI and an accuracy of ≤ 0.25%. Output of 4-20 mA 2-wire (Loop Powered) with supply voltage of 10-33 VDC and 40' pigtail electrical connection. Bullet style nose made of 316 stainless steel not removable. Optional NPT connection ($20.00) allows the unit to be rigidly installed in a pipe/conduit, or to attach our A-625 hanging loop for attaching a chain for pulling out of the installation. Class CE general purpose with 316 Stainless Case with PTFE-Coated Diaphragm Flush, non-clogging diaphragm great for dirty applications. Temperature range of -4F-176 F. Diameter is 1-3/16".
Condition: New
Usually ships Same Day or Next Day$1496.36
Sale Price
$1246.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer Mercoid FBLT-2SC-IVEP-10-40 Submersible Level Transmitter Series FBLT Flush Tip Diaphram Submersible Level Transmitter. Perfect for dirty applications like Sludge and Slurries. Flush, non-clogging diaphragm great for dirty applications. Vent has maintenance free filter to prevent particalate or water drops from entering transmitter. Recommended Accessories: A-297 Dessicant Filter.
Specifications
Component
Submersible Level Transmitter
Manufacturer
Dwyer
(Instrument-Sensor) Span
23'
(Instrument-Sensor) Output Signal Type
4-20 Ma 2 Wire (Loop Powered)
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Application
Dirty Liquids
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) Type
Bullet Nose
(Instrument-Sensor) Type
Slim Bore
(Instrument-Sensor) Temperature Range
-4 F - 176 F
(Instrument-Sensor) Size
1.1875"
Features
Long operating life with a non-clog flush diaphragm tip for harsh applications
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Suits harsh environments with choice of polyether polyurethane or ETFE cable materials for excellent chemical compatibility
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty)
Meet application requirements with narrow body design allows the FBLT to fit into stilling wells and narrow installations
Unit holds up in aggressive fluids with robust FKM fluoroelastomer diaphragm that is PTFE coated for a stick-resistant surface
Avoid product leaks typically cause by oil or grease with diaphragm cavity that is filled with gel
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use the A-625 hanging loop to attach a chain to remove from the installation
