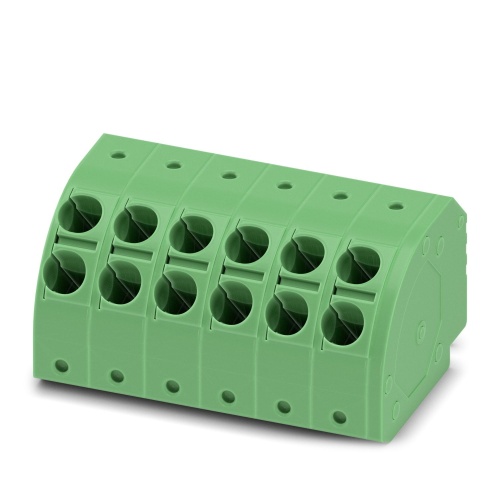

Phoenix Contact 1725549 The PCB connector has a nominal cross-section of 2.5 mm2 and is colored green, with a maximum current capacity of 14 A and a rated voltage of 400 V for III/2 conditions. The contact surface material is Sn and the connection type is socket, with six potentials available in one row of six positions, resulting in 12 connections. This connector falls within the PTDA 2,5/...-PH product range, featuring a pitch of 5 mm and utilizing push-in spring connections, where the conductor meets the PCB at a 45° angle.
