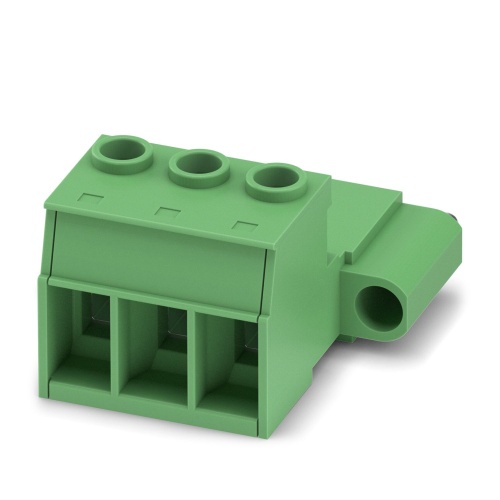

Phoenix Contact 1969467 PCB connector IPC 16/ 3-STF-10,16
Normally In Stock
Code: 143554
Phoenix Contact 1969467 IPC 16/ 3-STF-10,16 ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $20.11
Sale Price
$16.76
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1969467 The PCB connector features a nominal cross-section of 16mm2, is green in color, and has a maximum current rating of 76A with an electrical insulation rating of 1000V. The contact surface is made of silver (Ag) and the connection type is pin-based, with three potential connections available. This connector is part of the IPC 16/...-STF product range and features a pitch of 10.16mm, utilizing a screw connection system with a tension sleeve for secure attachment.
Specifications
Connector Amperage
76 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Connections
3
Number of Positions
3
Component
PCB
Sub Component
PCB Plug
Connector Voltage
1000 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
Screwable flange for superior mechanical stability
