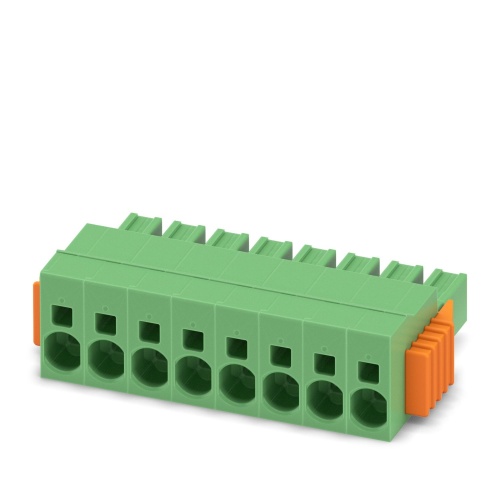

Phoenix Contact 1718546 PCB connector SPC 5/ 8-STCL-7,62
Normally In Stock
Code: 143594
Phoenix Contact 1718546 SPC 5/ 8-STCL-7,62 ,Copper Alloy,PA,I,PA Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $18.53
Sale Price
$15.44
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1718546 The connector has a nominal cross section of 6 mm2, color green, and is rated for 32 A of current with a maximum voltage of 1000 V. It features an Sn contact surface and uses a push-in spring connection method with a pitch of 7.62 mm, accommodating 8 positions and connections, and has an 8-potential configuration. This connector falls within the SPC 5/..-STCL product range and is part of the COMBICON PC 5 plug-in system, requiring clip locking for secure mounting via a Click & Lock latching slide, packaged in cardboard.
Specifications
Connector Amperage
41 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Voltage
7.3 Kv
Connector Voltage
3.31 Kv
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Connections
8
Number of Positions
8
Component
PCB
Sub Component
PCB Plug
Connector Voltage
1000 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
Optimized for tight installation situations: operation and conductor connection from one direction
The automatically locking Click and Lock system prevents accidental disconnection
600 V UL approval in the smallest of dimensions
