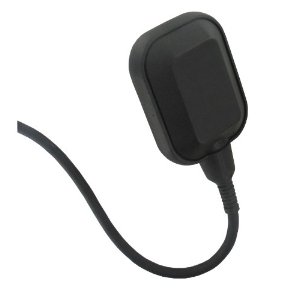

Dwyer Mercoid CFS2-CGDSN-20 Mechanical Float Switch
Normally In Stock
Code: 14407
Dwyer Mercoid CFS2-CGDSN-20 Mechanical Float Switch Compact Mechanical Float Switch. Single point alaming and control. Supply voltage of 125 VAC 4 Amp and 250 VAC 8 Amp with 20' SJOW cable. (SPST) Normally Closed Switch (Low Alarm). Polypropylene housing for general purpose UL/CSA approval. Max liquid temperature is 122 F. Max pressure 14.5 psi and max water depth 33' deep. Cable is 18 guage 2 conductor (Not Grounded).
Condition: New
Usually ships Same Day or Next Day$102.77
Sale Price
$85.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer Mercoid CFS2-CGDSN-20 SPST,NC Range 20ft Cable SJOW 3X16 cable SPST, NC Mechanical Float Switch mechanically actuated float switch to activate electrical components like pumps. Ideal for water level monitoring, tank level control, high or low level alarm,industrial water control, filling or draining reservoirs and tanks, and pump automation. High reliable design wih magnetic, mercury free mechanical integral components. Easy installation with counterweights and cable hangers for a variety of applications. Recommended Accessory: A-459 Cable Hanger
Specifications
Component
Float Switch
Manufacturer
Dwyer
(Instrument-Sensor) Type
Cable Suspended
(Instrument-Sensor) Type
1 Switch Level
(Instrument-Sensor) Span
33'
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Temperature Range
122 F
(Instrument-Sensor) Supply Voltage
125 VAC
(Instrument-Sensor) Supply Voltage
250 VAC
(Instrument-Sensor) Contact Configuration
1-Normally Closed
(Instrument-Sensor) Indication
Low Level-Alarm
Features
High reliability with mercury-free, magnetic, mechanical internal design
Economical pricing with multiple option available for increased versatility
Easy installation with counterweights and cable hangers to suit a variety of mounting applications
