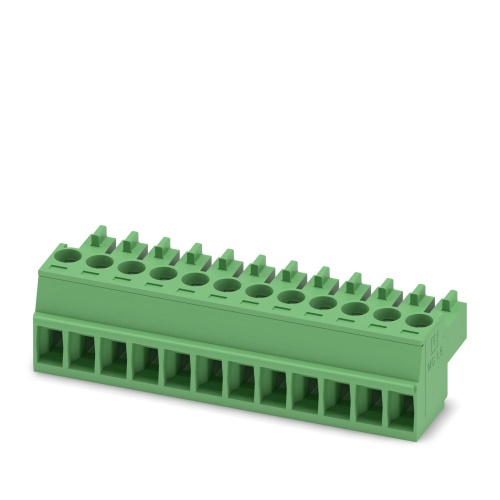

Phoenix Contact 1840463 PCB connector MC 1,5/12-ST-3,5
Normally In Stock
Code: 144071
Phoenix Contact 1840463 MC 1,5/12-ST-3,5 ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $17.59
Sale Price
$14.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

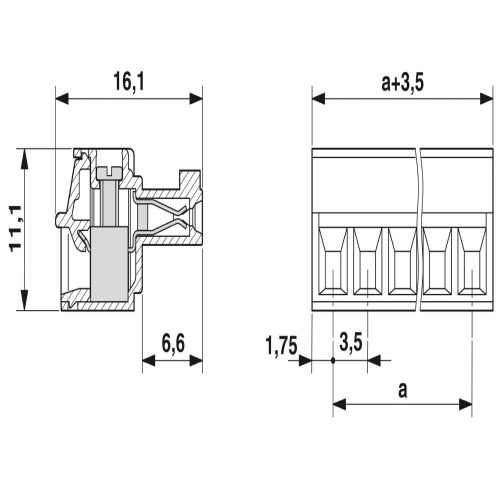

Phoenix Contact 1840463 The specified PCB connector has a cross-sectional area of 1.5 mm², measures 160 V and can handle up to 8 A of current, features a green color and contact surface made of tin, is a socket connection with 12 terminals, arranged in a single row of 12 positions, requiring screw connections with tension sleeves, and has a pitch of 3.5 mm, is used for the MC 1,5/...-ST product range, and is secured without locking or mounting, packaged in cardboard.
Specifications
Connector Amperage
8 Amp
Connector Voltage
2.5 Kv
Connector Voltage
2.95 Kv
Connector Voltage
1.39 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Connections
12
Number of Positions
12
Component
PCB
Sub Component
PCB Plug
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
