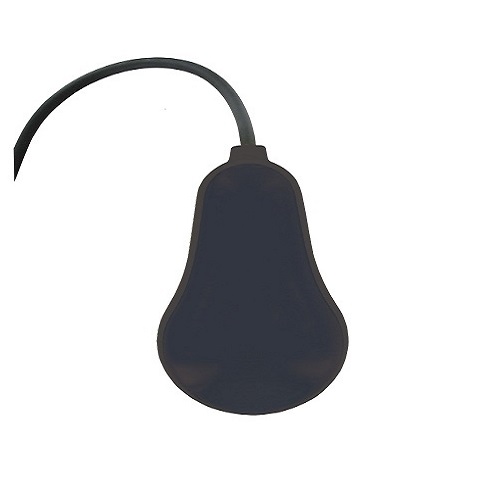

Dwyer Mercoid FSW2-ONPN-40 Mechanical Float Switch
Normally In Stock
Code: 14413
Dwyer Mercoid FSW2-ONPN-40 Mechanical Float Switch Compact Mechanical Float Switch. Single point alaming and control. Supply voltage up to 250 VAC 8 Amp with 40' PVC cable. (SPST) Normally Open Switch (High Alarm). Polypropylene housing for general purpose CE approval. Max liquid temperature is 122 F. Max pressure 29 psi and max water depth 67' deep. Cable is 18 guage 2 conductor (Not Grounded).
Condition: New
Usually ships Same Day or Next Day$200.54
Sale Price
$167.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer Mercoid FSW2-ONPN-40 SPST,NO Range 40ft Cable PVC Cable SPST, NO Mechanical Float Switch self counterweighted to activate electrical components like pumps. Ideal for wastewater level monitoring, tank level control, high or low level alarm. High reliable design wih magnetic, mercury free mechanical integral components. Easy installation with self counterweighted body and cable hangers for a variety of applications. Recommended Accessory: A-459 Cable Hanger
Specifications
Component
Float Switch
Manufacturer
Dwyer
(Instrument-Sensor) Type
Cable Suspended
(Instrument-Sensor) Type
1 Switch Level
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Temperature Range
122 F
(Instrument-Sensor) Contact Configuration
1-Normally Open
(Instrument-Sensor) Supply Voltage
125 VAC
(Instrument-Sensor) Supply Voltage
250 VAC
(Instrument-Sensor) Indication
High Level-Alarm
(Instrument-Sensor) Span
67'
Features
Body is free of any irregularities allowing substances to effortlessly glide off and consists of a double airtight chamber with high-pressure melted polypropylene re-injection sealing to ensure a perfect seal reducing maintenance events
High reliability with mercury-free, magnetic, mechanical internal design
Economical pricing with multiple option available for increased versatility
Seamless installation with self-counterweighted body and cable hangers to suit a variety of mounting applications
