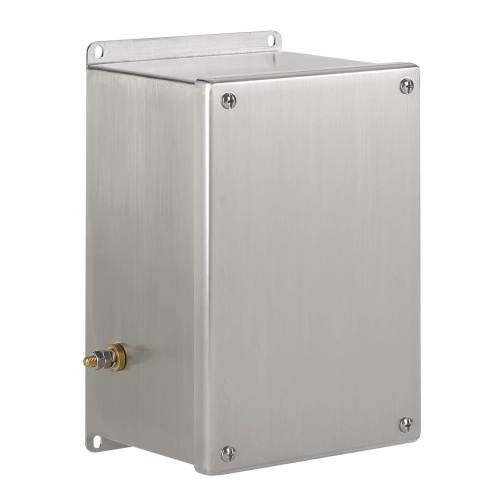

Hoffman EXE10105SS6 ZONEX Hazardous Location Enclosure
Normally In Stock
Code: 14551
Hoffman EXE10105SS6 ZONEX Enclosure 10"H x 10"W x 5"D, Nema 4x Type 316 Stainless Steel, Stainless Steel Screw on cover with no hinges. Optional Panel. Hazardous Classification Atex directive 94/9/EC Zones 1 and 2. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1417.73
Sale Price
$1181.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Hoffman EXE10105SS6 ZONEX Enclosure 10"H x 10"W x 5"D, This sleek Hoffman ZONEX enclosure is certified to meet ATEX directive 94/9/EC and IECEx standard for increased safety in housing electrical components in Zone 1 and Zone 2 applications. The continuous gasket on the door will protect enclosed components. Type 316 stainless steel covers are durable and provide a tight seal. With internal weldnuts for panel or DIN rail mounting and hardware for panel and bonding provisions, this enclosure is great for a variety of applications.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Depth
5"
Enclosure Composition
Aluminum
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 2
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 1
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
10"
Line
Zonex
Manufacturer
Hoffman
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Height
10"
Enclosure Latch Type
Screw
Component
Hazardous Location Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Features
Operating temperature range: -40 C to +70 C standard polyurethane gasket
Type 316L stainless steel cover screws
Mounting panel and hardware for bonding provisions included
Internal weldstuds for panel or DIN rail mounting brackets
One piece continuous gasket on door
6 mm brass internal/external bonding provision
3-mm thick individual welded-on top and bottom wall-mounting brackets
Increased safety: Ex e. IECEx e certified
Downloads
Hoffman EXE10105SS6 2D DXF CAD.zipHoffman EXE10105SS6 3D STEP CAD.zipHoffman EXE10105SS6 CAD Drawing.zipHoffman EXE10105SS6 Certificate of Conformity.pdfHoffman EXE10105SS6 Declaration of Compliance.pdfHoffman EXE10105SS6 Dimension Drawing.gifHoffman EXE10105SS6 EU Certification.pdfHoffman EXE10105SS6 EU-Type Examination Certificate.pdfHoffman EXE10105SS6 Instruction Manual.pdfHoffman EXE10105SS6 Spec Sheet.pdfHoffman EXE10105SS6 UL Certification.pdfHoffman EXE10105SS6 User Manual.pdf
