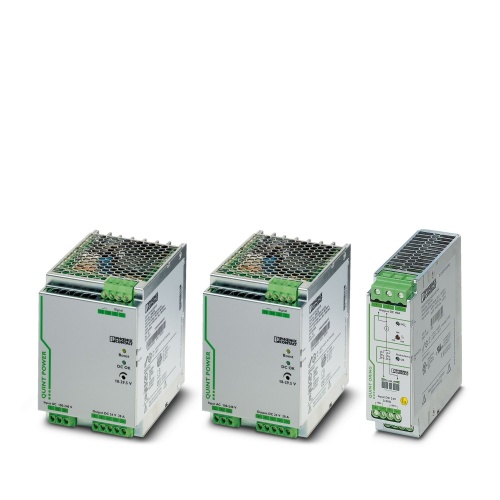

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 2320186 Redundancy module, with protective coating QUINT-ORING/24DC/2X20/1X40
Normally In Stock
Code: 14594
QUINT-ORING/24DC/2X20/1X40 Phoenix Contact 2320186 Power Supply Redundant 24V 2 x 40A QUINT
Condition: New
Usually ships within 7-14 days. Call for ship time.$374.05
Sale Price
$311.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2320186 This is an active QUINT redundancy module designed for DIN rail mounting, featuring ACB Technology and monitoring capabilities. It accepts a power input of 24V DC with a combined current rating of 20A on each side, and outputs 24V DC with a capacity of 40A on one side, complete with a built-in universal DIN rail adapter UTA 107/30 for secure mounting.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Housing
Enclosed
Power Supply Amperage Output
40 Amp
Power Supply Voltage Output
0.2 VDC
Manufacturer
Phoenix Contact
Component
Accessories
Line
QUINT
Sub Component
Redundancy Module
Power Supply Amperage Output Range
31-40 Amp
Power Supply Voltage Input Range
18 VDC - 28 VDC
Features
Consistent redundancy up to the load
Save energy
Permanent monitoring of redundancy
Service life of the redundant solution is doubled, thanks to uniform distribution of the load
Downloads
Phoenix 2320186 CAD data International.dxfPhoenix 2320186 CAD data International.pdfPhoenix 2320186 CAD data International.stpPhoenix 2320186 CAD Drawing.zipPhoenix 2320186 Data Sheet English.pdfPhoenix 2320186 Manufacturers declaration International.pdfPhoenix 2320186 Manufacturers declaration International-2.pdfPhoenix 2320186 Package Slip International.pdfPhoenix 2320186 Package Slip.pdfPhoenix 2320186 Product Information English.pdfPhoenix 2320186 Spec Sheet.pdfPhoenix 2320186 Tender Text English.zipPhoenix 2320186 Various English.pdf
