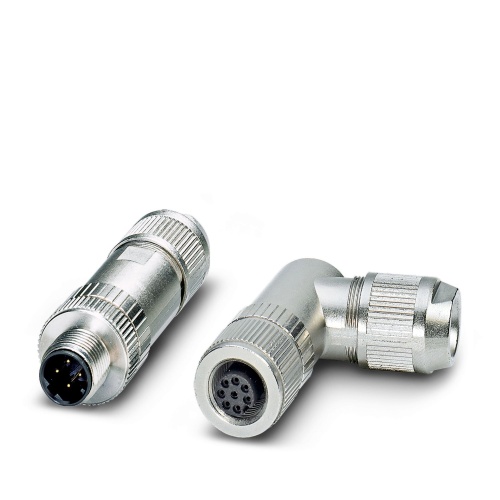

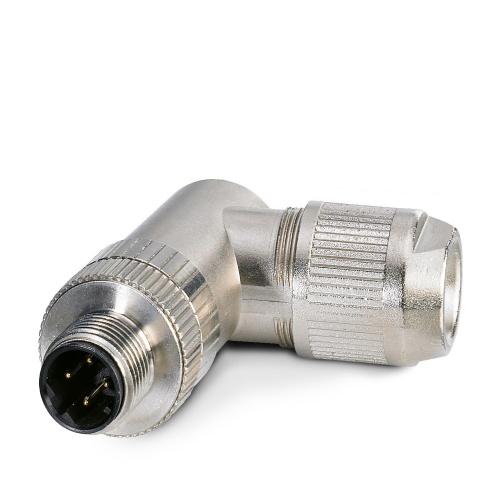

Phoenix Contact 1554539 Data connector SACC-M12MRD-4Q SH PN
Normally In Stock
Code: 149494
Phoenix Contact 1554539 - 4 Positions - CuSn - 23 AWG - IP67 - Insulation Displacement Connection - M12
Condition: New
Usually ships Same Day or Next Day$38.03
Sale Price
$31.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1554539 The data connector features a PROFINET CAT5 interface with a transmission speed of 100 Mbps and is designed for 4-position use. It has a shielded configuration and uses an insulation displacement connection, while the knurled material used is brass nickel-plated. The external cable diameter ranges from 4 to 8 mm.
Specifications
Connector Material
Cusn
Connector protection
IP67
Manufacturer
Phoenix Contact
Number of Positions
4
Component
Data
Sub Component
Cable Side
Connector Material
PA 6
Features
Safe use in the field, thanks to a high degree of protection
Insulation displacement connection: innovative and time-saving assembly without stripping the single wire
Reliable signal transmission – 360° shielding in environments with electromagnetic interference
