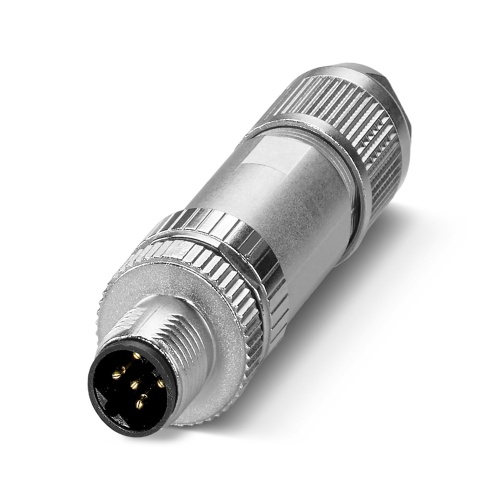

Phoenix Contact 1424674 Data connector SACC-M12MSB-5PL SH IB
Normally In Stock
Code: 150130
Phoenix Contact 1424674 - 5 Positions - CuSn - 26 AWG - IP65 - Push-Lock Connection - M12
Condition: New
Usually ships Same Day or Next Day$33.19
Sale Price
$27.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1424674 The data connector features an INTERBUS interface with a transmission speed of 500 kbps and is designed in a 5-position configuration. The unit is shielded and secured through a push-lock spring connection, which also includes a knurl material made from zinc die-cast nickel-plated components, ultimately resulting in an external cable diameter ranging from 4 to 8 millimeters.
Specifications
Connector Material
PA 6.6
Connector Material
CuSn
Connector protection
IP65
Manufacturer
Phoenix Contact
Number of Positions
5
Component
Data
Sub Component
Cable Side
Features
Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
Safely shielded: Reliable 360° shield connection even under extreme mechanical strain
