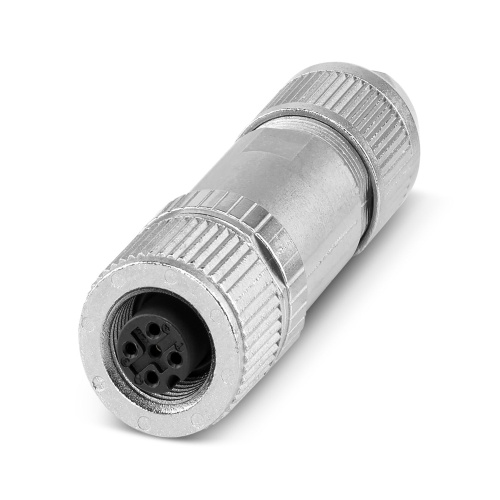

Phoenix Contact 1424672 Data connector SACC-M12FS-5PL SH DN
Normally In Stock
Code: 150316
Phoenix Contact 1424672 - 5 Positions - CuSn - 26 AWG - IP65 - Push-Lock Connection - M12
Condition: New
Usually ships Same Day or Next Day$32.87
Sale Price
$27.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1424672 The data connector features a specific configuration with CANopen and DeviceNet standards, utilizing a 5-position shielded socket with a straight M12 male connector. It is secured using a push-lock spring connection and has a knurl material composed of zinc die-cast and nickel-plated components, with an external cable diameter ranging from 4 to 8 millimeters.
Specifications
Connector Material
PA 6.6
Connector Material
CuSn
Connector protection
IP65
Manufacturer
Phoenix Contact
Number of Positions
5
Component
Data
Sub Component
Cable Side
Features
Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
Safely shielded: Reliable 360° shield connection even under extreme mechanical strain
