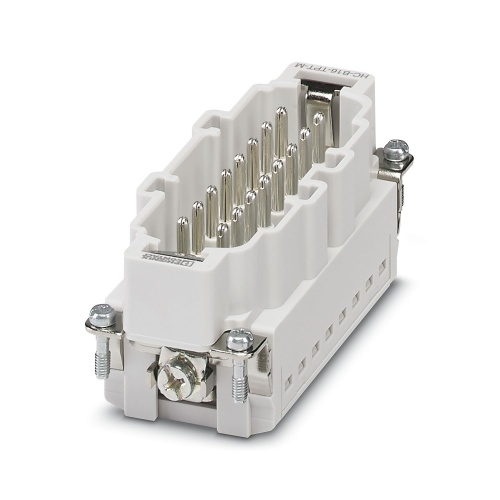

Phoenix Contact 1423825 Contact insert HC-B16-I-TPT-M-32
Normally In Stock
Code: 153002
Phoenix Contact 1423825 - Contact insert - 16 Positions - Copper Alloy - 24 AWG - Light gray - 16 Amp - 500 V - Push-In Connection
Condition: New
Usually ships Same Day or Next Day$30.24
Sale Price
$25.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1423825 A contact insert with a specified configuration is designed for power applications, featuring a size of B16 and accommodating up to 16 positions. Each position has two push-in connections, rated for a maximum voltage of 500 V and current capacity of 16 A per connection, with wire gauges ranging from 0.25 mm² to 1.5 mm².
Specifications
Connector Amperage
16 Amp
Connector Size
B16
Connector Color
Light Gray
Connector Material
PC
Connector Material
Copper Alloy
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
16
Connector Voltage
500 Volt
Features
Easy installation without tools, even when mounted, with push-in connection technology
Shortest installation time compared to other connection technologies
Quick and effortless wiring, in particular when space is tight
Automatic cabling with robots possible
Safe wiring and operation with color-coded actuators
Shock and vibration-resistant in accordance with DIN EN 61373
Cost-effective and fast coding with plastic profiles
Double conductor connection per pos.
