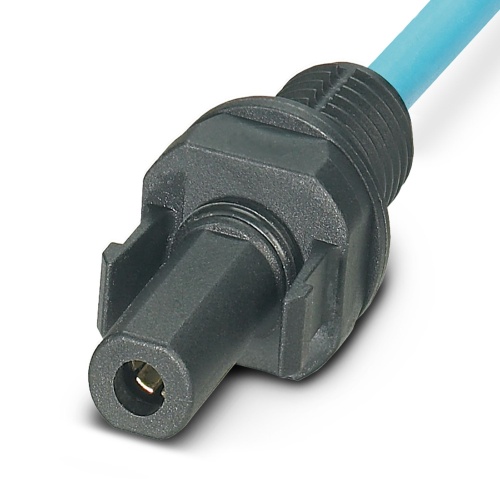

Phoenix Contact 1805135 Device connector front mounting PV-FT-CF-C-2,5-130-BU
Normally In Stock
Code: 154907
Phoenix Contact 1805135 - Device connector front mounting - SUNCLIX - 1 Position - Cu - Black - 1000 V - IP20 - Crimp Connection - Latch Locking
Condition: New
Usually ships Same Day or Next Day $3.70
Sale Price
$3.08
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1805135 The device connector is designed for front mounting and features a range of articles from SUNCLIX with a black color, accommodating one position. The minimum conductor cross section required is 2.5 mm², while the rated voltage is 1000 V DC and the maximum current capacity is 27 A. Connection is achieved via crimping, using a socket type contact, with a cable length of 130 units.
Specifications
Connector Color
Black
Connector Material
PPE
Connector Material
Cu
Connector protection
IP20
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
1
Sub Component
Device Connector-Front Mounting
Connector Voltage
1000 Volt
Features
Quick and easy conductor connection on site with innovative fast-connection technology
Greater flexibility and time savings with numerous connection technologies and preassembled solutions with SUNCLIX connectors with crimp connection
Easy cabling as the solar connectors are assembled without using special tools
Permanently reliable connection with TÜV- and UL-tested components
Future-oriented cabling of photovoltaic systems with consistent connection solutions
