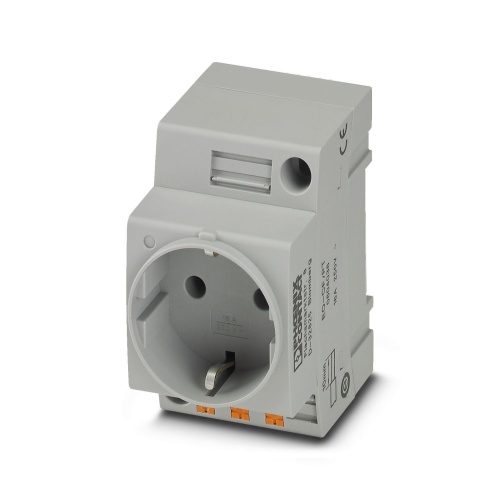

Phoenix Contact 0804038 Socket EO-CF/PT
Normally In Stock
Code: 155148
Phoenix Contact 0804038 EO-CF/PT gray ,CuZn37,PA Socket (MUST BUY IN PACKS OF 5)
Condition: New
Usually ships Same Day or Next Day$9.60
Sale Price
$8.00
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0804038 The socket features a CF pin connector pattern type with push-in spring connection, has a gray color and is designed for use at nominal voltages of 250V AC (50Hz) and currents of up to 16A. It can be mounted on a DIN rail in the service interface or attached directly, with compliance to standards such as VDE 0620-1 and IEC 60884-1.
Specifications
Outlet Color
Gray
Outlet Mounting
Din Rail
Outlet Voltage Rating
250 Volt
Outlet Amperage Rating
16 Amp
Manufacturer
Phoenix Contact
Outlet Number of Receptacles
1 Receptacle
Features
Comprehensive product range for worldwide use
Space-saving due to the modular design and versions with double slot

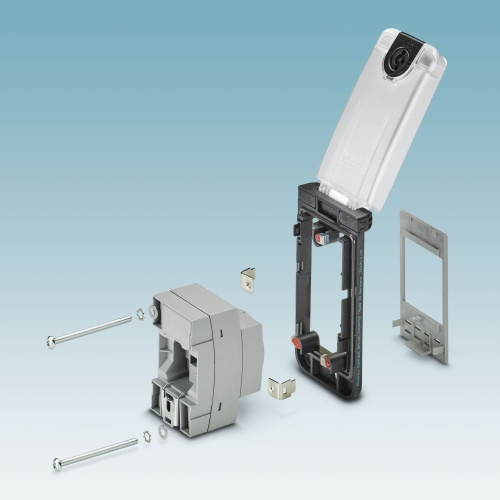

Flexible installation with DIN rail, mounting frame, and direct mounting
Robust and temperature-resistant due to versions with IP65 degree of protection
Integrated touch protection
