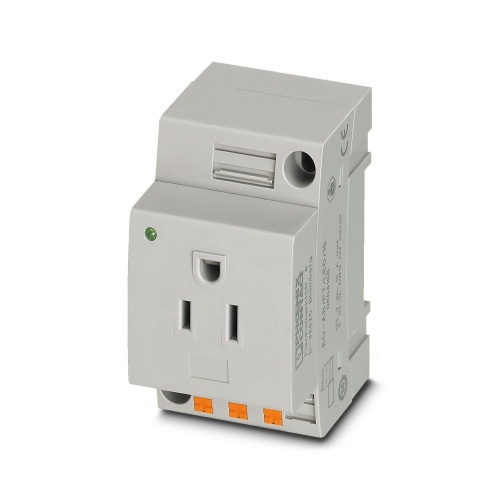

Phoenix Contact 0804168 Socket EO-AB/PT/LED/15
Normally In Stock
Code: 155219
Phoenix Contact 0804168 EO-AB/PT/LED/15 gray ,CuZn37,PA Socket (MUST BUY IN PACKS OF 5)
Condition: New
Usually ships Same Day or Next Day$16.97
Sale Price
$14.14
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

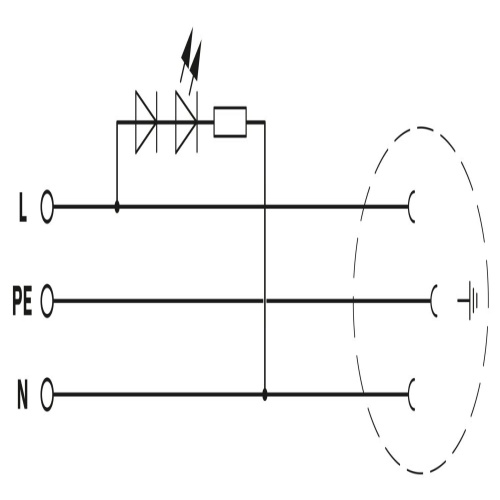

Phoenix Contact 0804168 The socket features a light indicator and has a pin connector pattern type AB 15A with a push-in spring connection, grey color, and operates at 125V AC (60Hz) with a nominal current of 15A. It is suitable for both DIN rail mounting in the service interface or direct mounting on walls, and complies with standards/specifications including UL 508 and IEC 60884-1. The product is specifically marked for use in the USA and Canada countries.
Specifications
Outlet Color
Gray
Outlet Mounting
Din Rail
Outlet Amperage Rating
15 Amp
Manufacturer
Phoenix Contact
Outlet Number of Receptacles
1 Receptacle
Outlet Voltage Rating
125 Volt
Features
Comprehensive product range for worldwide use
Space-saving due to the modular design and versions with double slot
Flexible installation with DIN rail, mounting frame, and direct mounting
Robust and temperature-resistant due to versions with IP65 degree of protection
Integrated touch protection
