Phoenix Contact 0804509 Socket EO-AB/UT/LED/20
Normally In Stock
Code: 155234
Phoenix Contact 0804509 EO-AB/UT/LED/20 gray ,CuZn37,PA Socket (MUST BUY IN PACKS OF 5)
Condition: New
Usually ships Same Day or Next Day$16.97
Sale Price
$14.14
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

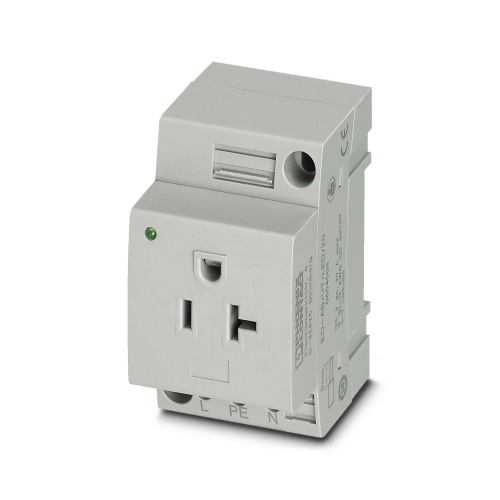

Phoenix Contact 0804509 The socket features a light indicator and is classified as Type AB 20A with screw connections and a gray color. It operates within a nominal voltage of 125 V AC at 60 Hz and has a maximum current capacity of 20 A, suitable for mounting on either a DIN rail or directly onto a surface. The product complies with standards such as UL 508 and IEC 60884-1, is marked for use in the USA and Canada, and can be installed according to these regions' specifications.
Specifications
Outlet Color
Gray
Outlet Mounting
Din Rail
Outlet Amperage Rating
20 Amp
Manufacturer
Phoenix Contact
Outlet Number of Receptacles
1 Receptacle
Outlet Voltage Rating
125 Volt
Features
Comprehensive product range for worldwide use
Space-saving due to the modular design and versions with double slot
Flexible installation with DIN rail, mounting frame, and direct mounting
Robust and temperature-resistant due to versions with IP65 degree of protection
Integrated touch protection
