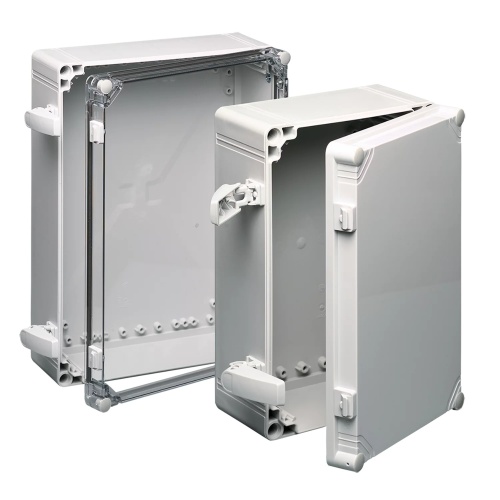

Hoffman Q402013ABICC QLINE I Non-Metallic ABS Enclosure
Normally In Stock
Code: 15812
Hoffman Q402013ABICC Enclosure 15.28 x 7.40 x 4.84 inch (HxWxD) ABS QLINE I Type 4x Clear Enclosure with no hinge easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$169.32
Sale Price
$141.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Hoffman Q402013ABICC Enclosure 15.28 x 7.40 x 4.84 inch (HxWxD) ABS QLINE I Type 4x Clear Enclosure with no hinge easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Depth
5"
Enclosure Interior Color
Gray
Enclosure Composition
ABS
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
8"
Enclosure Width
16"
Line
Qline
Manufacturer
Hoffman
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Latch Type
Screw
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Features
Molded internal pads for mounting optional panels, rails and other components
Polycarbonate and ABS material is easily punched, drilled, filed or sawed
Mounting holes molded directly under cover screws
Molded internal rails for mounting adjustable-depth panel kit
Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
Screws provided for mounting optional panel
Material is halogen free
Seamless foam-in-place gasket assures water-tight and dust-tight seal
Cover includes a molded-in hole for wire lead
Optional extension rings are molded polycarbonate
Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Downloads

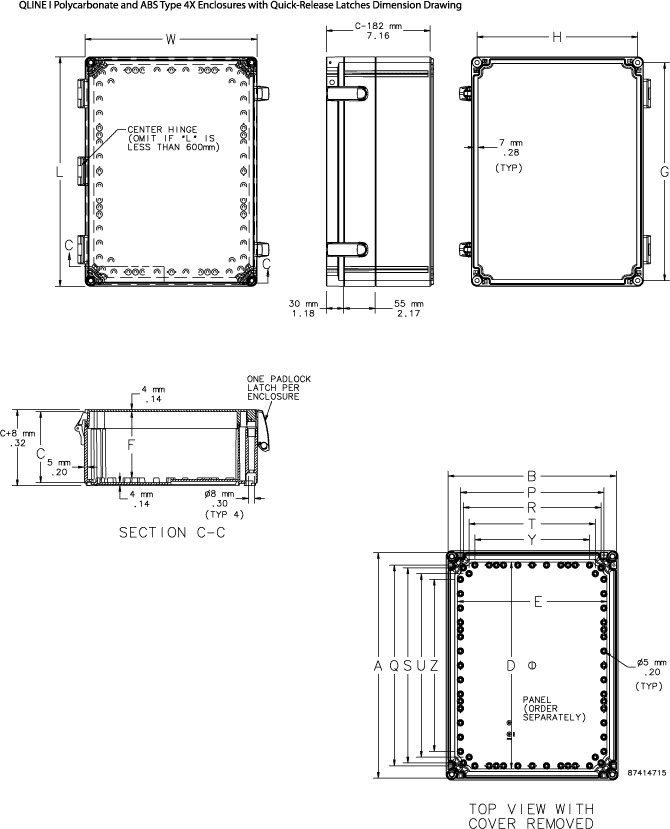

Hoffman Q402013ABICC 2D DXF CAD.zipHoffman Q402013ABICC 3D STEP CAD.zipHoffman Q402013ABICC CSA Certification.pdfHoffman Q402013ABICC Declaration of Compliance.pdfHoffman Q402013ABICC Dimension Drawing.gifHoffman Q402013ABICC EU Certification.pdfHoffman Q402013ABICC Spec Sheet.pdfHoffman Q402013ABICC UL Certification.pdf
