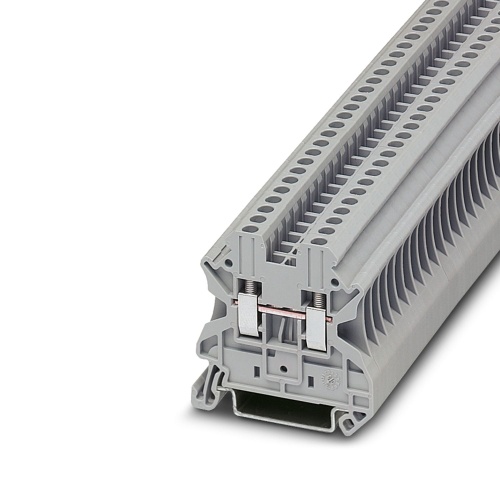

Phoenix Contact 3044076 Feed-through terminal block UT 2,5
Normally In Stock
Code: 1621
UT 2,5 Phoenix Contact 3044076 Phoenix Contact UT 2.5. Terminal Block 5.2mm Gray Single through screw connection, 1000V, 32A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$1.31
Sale Price
$1.09
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044076 The terminal block features a feed-through design with specifications of 1000 V nominal voltage and 24 A nominal current, accommodating up to two connections secured by screw connection. The rated cross-sectional area is 2.5 mm², while the actual cross-section ranges from 0.14 mm² to 4 mm², and it can be mounted using NS 35/7.5 or NS 35/15 types, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Amperage
24 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Features
Tested for railway applications
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
Downloads
Phoenix 3044076 Application Note International.pdfPhoenix 3044076 Assembly Instructions.pdfPhoenix 3044076 CAD data International.dxfPhoenix 3044076 CAD data International.pdfPhoenix 3044076 CAD data International.stpPhoenix 3044076 CAD Drawing.zipPhoenix 3044076 Certification English-2.pdfPhoenix 3044076 Certification English.pdfPhoenix 3044076 Manufacturers declaration English.pdfPhoenix 3044076 Manufacturers declaration International-2.pdfPhoenix 3044076 Manufacturers declaration International-3.pdfPhoenix 3044076 Manufacturers declaration International.pdfPhoenix 3044076 Product Information English.pdfPhoenix 3044076 Safety note English.pdfPhoenix 3044076 Spec Sheet.pdfPhoenix 3044076 Tender Text English.zipPhoenix 3044076 User instructions for the Ex Area International.pdfPhoenix 3044076 User Manual.pdf
