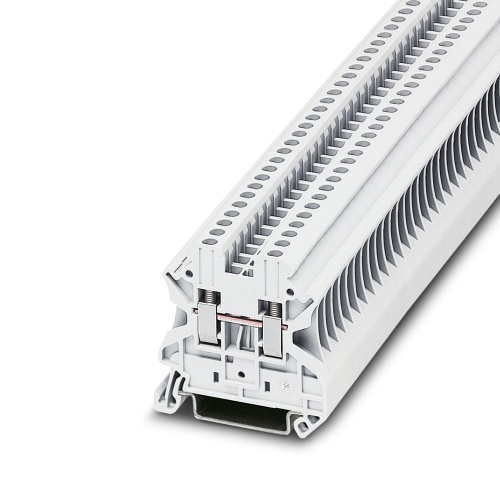

Phoenix Contact 3045075 Feed-through terminal block UT 2,5 WH
Normally In Stock
Code: 1623
UT 2,5 WH Phoenix Contact 3045075 Phoenix Contact UT 2.5 WH. Terminal Block 5.2mm White Single through screw connection, 1000V, 32A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$1.37
Sale Price
$1.14
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045075 A feed-through terminal block features a nominal voltage of 1000V and a maximum current of 24A, accommodating up to two connections via screw method, with rated cross-sections ranging from 2.5mm² to 4mm², and can be mounted using NS35/7.5 or NS35/15 types, characterized by a white color and available in these configurations.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Component Color
White
Terminal Block Amperage
24 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
