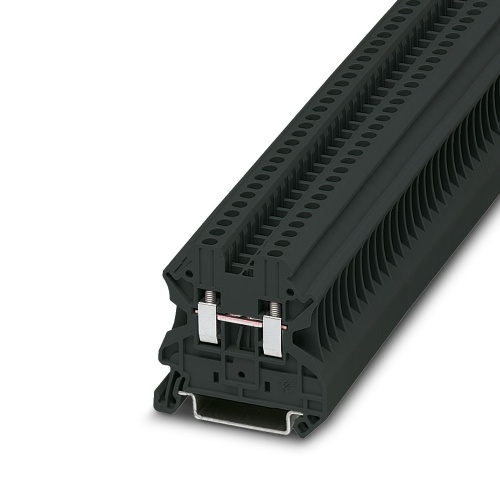

Phoenix Contact 3045088 NS35/15 Industrial Terminal Block 1000V 24A
Normally In Stock
Code: 1628
Screw-connected connections provide reliable high-voltage connections up to 1000V/24A for industrial manufacturing applications
Condition: New
Usually Ships Same day or Next Day$1.37
Sale Price
$1.14
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The Phoenix Contact 3045088 A feed-through terminal block boasts a high voltage rating of 1000V and a substantial current capacity of 24A, accommodating two connections via screw connection, while its cross-sectional area ranges from 2.5mm² to 4mm² with a small core section of 0.14mm²
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Component Color
Black
Terminal Block Amperage
24 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Features
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
Downloads
Phoenix 3045088 Application Note International.pdfPhoenix 3045088 Assembly Instructions.pdfPhoenix 3045088 CAD data International.dxfPhoenix 3045088 CAD data International.pdfPhoenix 3045088 CAD data International.stpPhoenix 3045088 CAD Drawing.zipPhoenix 3045088 Certification English-2.pdfPhoenix 3045088 Certification English.pdfPhoenix 3045088 Manufacturers declaration English.pdfPhoenix 3045088 Manufacturers declaration International-2.pdfPhoenix 3045088 Manufacturers declaration International.pdfPhoenix 3045088 Safety note English.pdfPhoenix 3045088 Spec Sheet.pdfPhoenix 3045088 Tender Text English.zipPhoenix 3045088 User instructions for the Ex Area International.pdfPhoenix 3045088 User Manual.pdf
