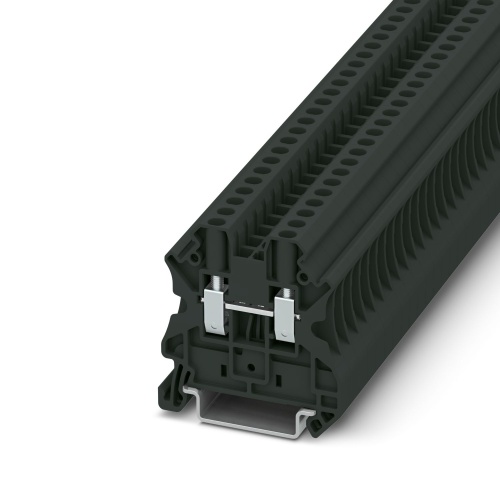

Phoenix Contact 3045143 Feed-through terminal block UT 4 BK
Normally In Stock
Code: 1669
UT 4 BK Phoenix Contact 3045143 Phoenix Contact UT 4 BK. Terminal Block 6.2mm Black Single through screw connection, 1000V, 41A, 10-26AWG
Condition: New
Usually Ships Same day or Next Day$1.46
Sale Price
$1.22
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045143 A feed-through terminal block features a nominal voltage of 1000 V and a maximum current capacity of 32 A, with two connection points utilizing screw connections. The rated cross-sectional area is 4 mm2, while the actual cross-section can vary between 0.14 mm2 to 6 mm2, and this component is mounted using type NS 35/7,5 or NS 35/15 fixtures, typically in a black finish.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Black
Terminal Block Amperage
32 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Features
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
Downloads
Phoenix 3045143 Application Note International.pdfPhoenix 3045143 CAD data International.dxfPhoenix 3045143 CAD data International.pdfPhoenix 3045143 CAD data International.stpPhoenix 3045143 CAD Drawing.zipPhoenix 3045143 Certification English-2.pdfPhoenix 3045143 Certification English.pdfPhoenix 3045143 Manufacturers declaration English.pdfPhoenix 3045143 Manufacturers declaration International-2.pdfPhoenix 3045143 Manufacturers declaration International.pdfPhoenix 3045143 Safety note English.pdfPhoenix 3045143 Spec Sheet.pdfPhoenix 3045143 Tender Text English.zipPhoenix 3045143 User instructions for the Ex Area International.pdfPhoenix 3045143 User Manual.pdf
