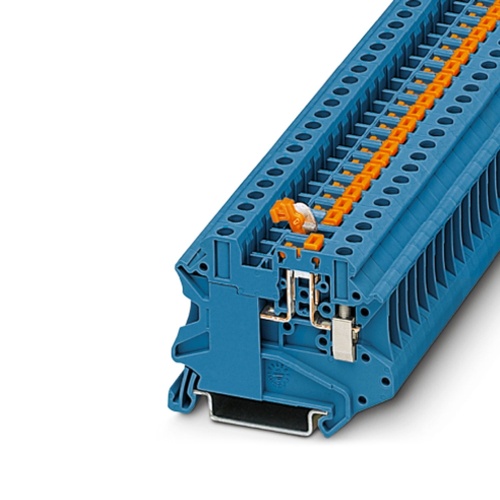

Phoenix Contact 3046278 Knife-disconnect terminal block UT 4-MT BU
Normally In Stock
Code: 1678
UT 4-MT BU Phoenix Contact 3046278 Phoenix Contact UT 4-MT BU. Terminal Block 6.2mm Blue Knife Disconnect Feed through screw connection, up to 500V, 20A, 10-26AWG (No end cover) (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$4.30
Sale Price
$3.58
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046278 The terminal block has a knife-disconnect feature and is designed for 500V voltage applications, with a maximum continuous current of 20A. It features a screw connection method and comes in various rated cross-section sizes ranging from 0.14mm2 to 6mm2. The unit is mounted using either the NS35/7.5 or NS35/15 mounting system, and has a distinctive blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect terminal block
Sub Component
Knife Disconnect Terminal Block
Features
Double bridge shaft enables individual potential distribution and supply
Compact design and high current carrying capacity of 20 A
Downloads
Phoenix 3046278 CAD data International.dxfPhoenix 3046278 CAD data International.pdfPhoenix 3046278 CAD data International.stpPhoenix 3046278 CAD Drawing.zipPhoenix 3046278 Manufacturers declaration English.pdfPhoenix 3046278 Manufacturers declaration International-2.pdfPhoenix 3046278 Manufacturers declaration International.pdfPhoenix 3046278 Safety note English.pdfPhoenix 3046278 Spec Sheet.pdfPhoenix 3046278 Tender Text English.zip
