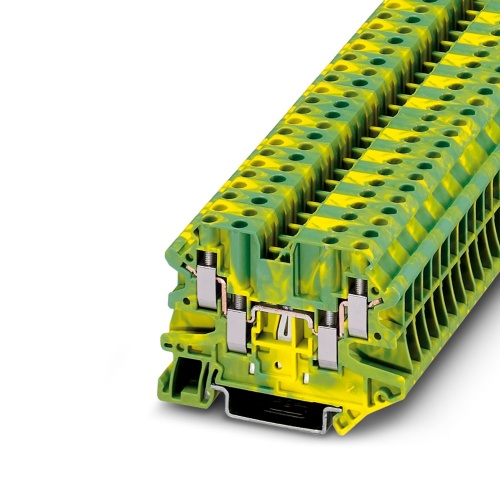

Phoenix Contact 3044597 Protective conductor terminal block UT 4-QUATTRO-PE
Normally In Stock
Code: 1696
UT 4-QUATTRO-PE Phoenix Contact 3044597 Phoenix Contact UT 4-QUATTRO-PE. Terminal-Ground Block 5.2mm Green-Yellow 4 Conductor Single through screw connection,10-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$7.39
Sale Price
$6.16
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044597 A protective conductor terminal block with four connection options is available in two different configurations - one with a single level of screw connections and the other with multiple levels. The cross-sectional area ranges from 0.14 mm² to 6 mm², while the mounting types include NS 35/7.5 and NS 35/15. The terminal block comes in green-yellow color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Green/Yellow
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Ground terminal block
Sub Component
Ground Modular Terminal Block
Features
Tested for railway applications
These versions can be used as compact potential distributors
Downloads
Phoenix 3044597 CAD data International.dxfPhoenix 3044597 CAD data International.pdfPhoenix 3044597 CAD data International.stpPhoenix 3044597 CAD Drawing.zipPhoenix 3044597 Certification English.pdfPhoenix 3044597 Certification International.pdfPhoenix 3044597 Manufacturers declaration English.pdfPhoenix 3044597 Manufacturers declaration International-2.pdfPhoenix 3044597 Manufacturers declaration International.pdfPhoenix 3044597 Safety note English.pdfPhoenix 3044597 Spec Sheet.pdfPhoenix 3044597 Tender Text English.zipPhoenix 3044597 User instructions for the Ex Area International.pdfPhoenix 3044597 User Manual.pdf
