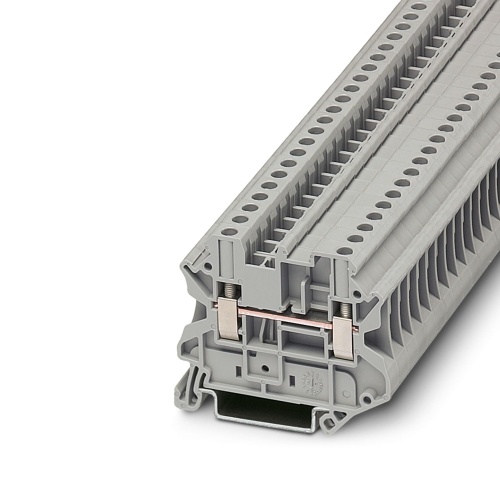

Phoenix Contact 3046184 Feed-through terminal block UT 4-MTD
Normally In Stock
Code: 1697
UT 4-MTD Phoenix Contact 3046184 Phoenix Contact UT 4-MTD. Terminal Block 6.2mm Gray with MT shape Single through screw connection, 800V, 41A, 10-26AWG
Condition: New
Usually Ships Same day or Next Day$1.50
Sale Price
$1.25
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046184 The terminal block features a feed-through design with an 800V nominal voltage and 32A nominal current rating, accommodating two connections secured via screw attachment, with rated cross sections ranging from 0.14 to 6mm², mounted using the NS 35/7.5 or NS 35/15 type, and distinguished by its gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
32 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Features
Feed-through terminal block enables terminal strips of the same shape to be configured with disconnect and knife disconnect terminal blocks
The consistent labeling and bridging of terminal blocks is an advantage
