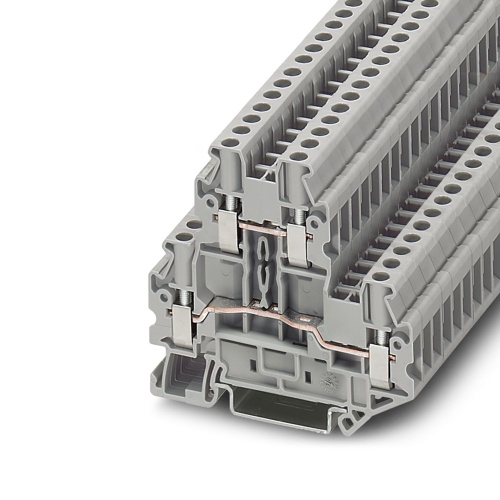

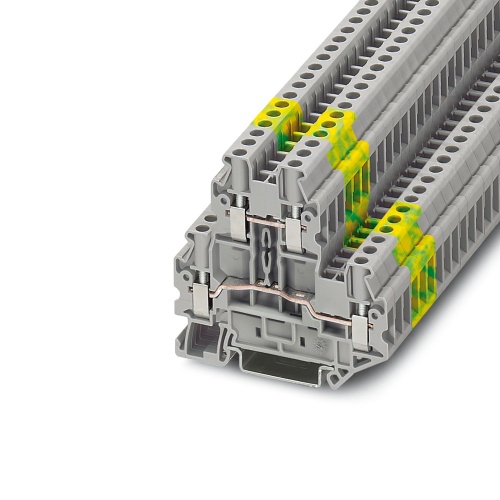

Phoenix Contact 3044814 Double-level terminal block UTTB 4
Normally In Stock
Code: 1712
UTTB 4 Phoenix Contact 3044814 Phoenix Contact UTTB 4, Gray Double Level Feed Through Terminal Block 6.2mm, 800V, 36A, 10-26AWG bridgeable on both Levels
Condition: New
Usually Ships Same day or Next Day$3.68
Sale Price
$3.07
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

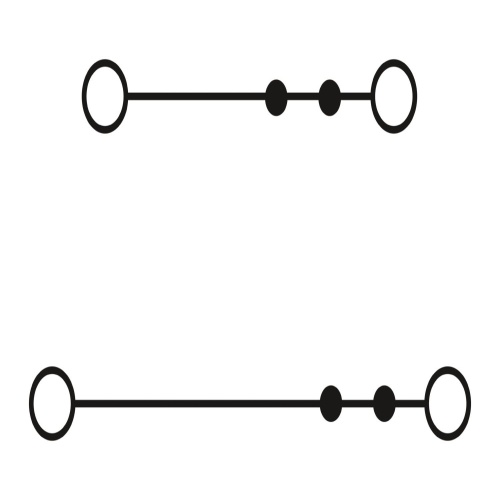

Phoenix Contact 3044814 A double-level terminal block with a nominal voltage of 800V and a maximum current rating of 30A is available, featuring screw connections on both levels. The rated cross-sectional area is 4mm², but it can accommodate cross-sectional areas ranging from 0.14mm² to 6mm². The mounting type includes NS35/7.5 and NS35/15 variants, while the terminal block itself has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
30 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Multi-level terminal block
Sub Component
Double-Level Terminal Block
Features
For example, two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks
For a clear overview, each terminal point supports large-surface labeling
As an option, the levels can be connected using the FBS‑PV UT vertical bridge
Since there are two function shafts per level, all potential distribution tasks can be implemented quickly
Tested for railway applications
