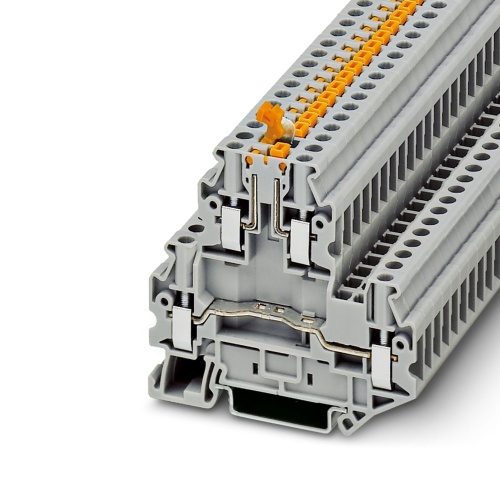

Phoenix Contact 3044775 Knife-disconnect terminal block UTTB 4-MT
Normally In Stock
Code: 1716
UTTB 4-MT Phoenix Contact 3044775 Phoenix Contact UTTB 4-MT, Double Level Feed Through Terminal Block 6.2mm Knife Disconnect Gray, up to 500V, 30A, 10-26AWG bridgeable on both Levels.
Condition: New
Usually Ships Same day or Next Day$8.33
Sale Price
$6.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044775 A knife-disconnect terminal block with a nominal voltage of 500 V and a nominal current capacity of 30 A features screw connections for secure attachment. The rated cross-sectional area ranges from 4 mm2 to 6 mm2, allowing for flexibility in wire selection. This terminal block is designed with a disconnect zone that can be mounted using the NS 35/7,5 or NS 35/15 mounting systems, and its gray color provides a standardized appearance.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
30 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Disconnect terminal block
Sub Component
Knife Disconnect Terminal Block
Features
Double function shaft in the lower level
Downloads
Phoenix 3044775 CAD data International.dxfPhoenix 3044775 CAD data International.pdfPhoenix 3044775 CAD data International.stpPhoenix 3044775 CAD Drawing.zipPhoenix 3044775 Manufacturers declaration English.pdfPhoenix 3044775 Manufacturers declaration International.pdfPhoenix 3044775 Safety note English.pdfPhoenix 3044775 Spec Sheet.pdfPhoenix 3044775 Tender Text English.zip
